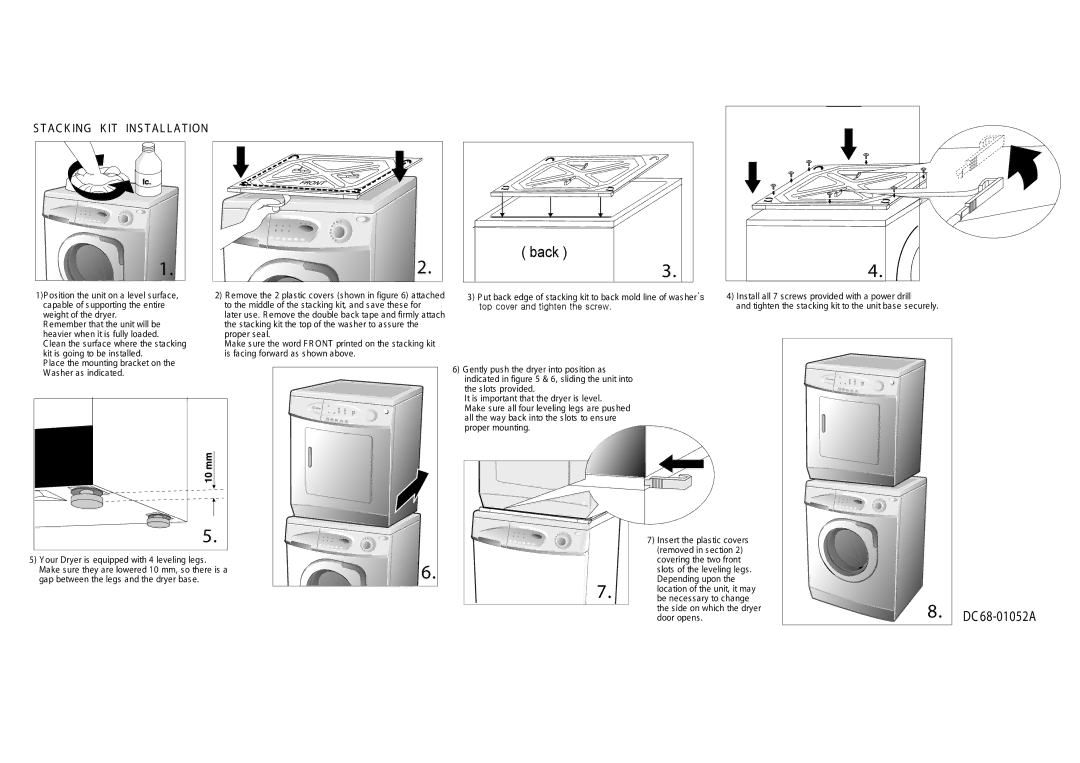

ST AC K ING KIT INS TA LL A TIO N
1)Pos ition the unit on a level surfa ce,
capa ble of s upporting the e ntire
weight of the dryer.
R emember that the unit will be
heav ier when it is fully loaded.
C lean the surfa ce whe re the stacking
kit is going to be installed.
P lace the mounting brac ket on the
Wa sher as indicated.
2) R emove the 2 pla stic c overs (sho wn in figure 6) a ttached
to the middle of the stack ing kit, a nd sa ve thes e for
later use . R emove the double back tape a nd firmly a ttach
the stacking kit the top of the was her to a ss ure the
proper sea l.
Make s ure the word F R ONT printed on the sta cking kit
is facing forward a s s hown a bove.
3) Put ba ck e dge of s tacking kit to back mold line of was her
5) Your Dryer is e quipped with 4 leveling legs .
Make s ure they are lowered 10 mm, so there is a
ga p between the legs and the dryer ba se .
6) Ge ntly push the dryer into position as
indic ated in figure 5 & 6, sliding the unit into
the slots provided.
I t is importa nt that the dryer is level.
Make sure all four leveling le gs a re pus hed
a ll the wa y bac k into the s lots to ensure
proper mounting.
3.6.4) Install all 7 scre ws prov ided with a power drill
a nd tighten the s tacking k it to the unit bas e s ecure ly.
4.8.DC68-01052A
7) Inse rt the plas tic cove rs
(re moved in sec tion 2)
cov ering the two front
slots of the leveling legs.
Depending upon the
loca tion of the unit, it may
be neces sa ry to c hange
the side o n which the dryer
door opens.
