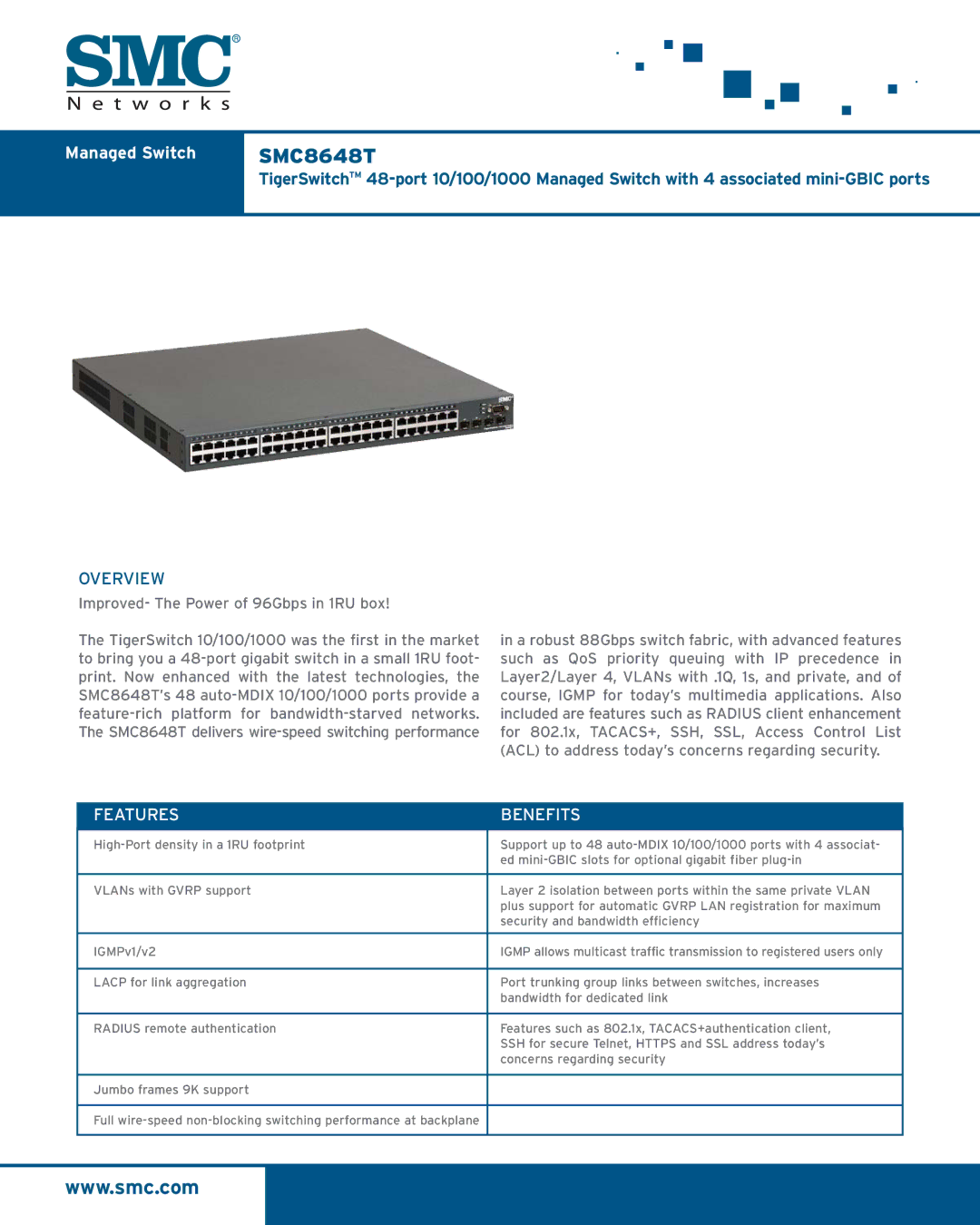

Managed Switch	SMC8648T
	TigerSwitchTM 48-port 10/100/1000 Managed Switch with 4 associated mini-GBIC ports

OVERVIEW

Improved- The Power of 96Gbps in 1RU box!

The TigerSwitch 10/100/1000 was the first in the market to bring you a 48-port gigabit switch in a small 1RU foot- print. Now enhanced with the latest technologies, the SMC8648T’s 48 auto-MDIX 10/100/1000 ports provide a feature-rich platform for bandwidth-starved networks. The SMC8648T delivers wire-speed switching performance

in a robust 88Gbps switch fabric, with advanced features such as QoS priority queuing with IP precedence in Layer2/Layer 4, VLANs with .1Q, 1s, and private, and of course, IGMP for today’s multimedia applications. Also included are features such as RADIUS client enhancement for 802.1x, TACACS+, SSH, SSL, Access Control List (ACL) to address today’s concerns regarding security.

FEATURES	BENEFITS
High-Port density in a 1RU footprint	Support up to 48 auto-MDIX 10/100/1000 ports with 4 associat-
	ed mini-GBIC slots for optional gigabit fiber plug-in
VLANs with GVRP support	Layer 2 isolation between ports within the same private VLAN
	plus support for automatic GVRP LAN registration for maximum
	security and bandwidth efficiency
IGMPv1/v2	IGMP allows multicast traffic transmission to registered users only
LACP for link aggregation	Port trunking group links between switches, increases
	bandwidth for dedicated link
RADIUS remote authentication	Features such as 802.1x, TACACS+authentication client,
	SSH for secure Telnet, HTTPS and SSL address today’s
	concerns regarding security
Jumbo frames 9K support
Full wire-speed non-blocking switching performance at backplane

www.smc.com
