maintenance

replacing the bar and chain

See Figures 15 - 20.

WARNING:

To avoid possible serious injury, stop engine before re- placing the bar, chain, or performing any maintenance operation.

nRemove the bar nut and drivecase cover.

nThe bar contains a bar stud slot that fits over the bar stud. The bar also contains a chain tensioning pin hole which fits over the chain tensioning pin.

nPlace the bar onto the bar stud so that the chain tension- ing pin fits into the chain tensioning pin hole.

nFit the chain over the sprocket and into the bar groove. The cutters on the top of the bar should face toward the bar tip, in the direction of the chain rotation.

nReplace the drivecase cover and install the bar nut. Tighten the bar nut finger tight only. The bar must be free to move for tension adjustment.

CHAIN

BAR

BAR NUT

DRIVECASE







COVER

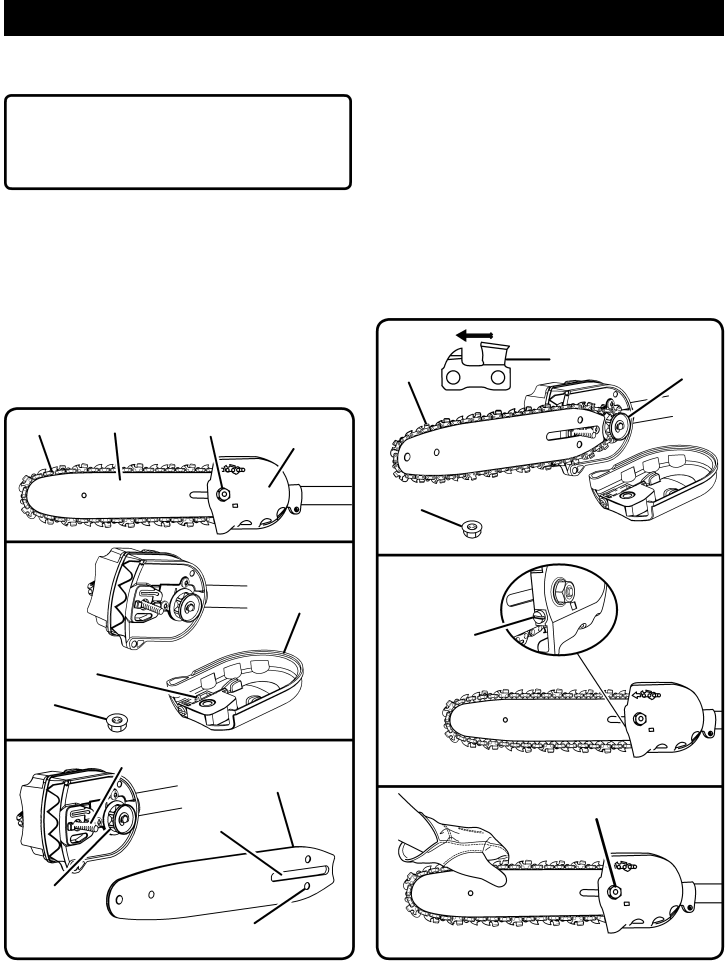

Fig. 15

DRIVECASE

COVER

CHAIN

TENSIONING PIN

BAR NUT

Fig. 16

BAR STUD

BAR

BAR STUD SLOT

SPROCKET

CHAIN TENSIONING



PIN HOLE

Fig. 17

nRemove all slack from chain by turning the chain tension- ing screw clockwise, assuring that the chain seats into the bar groove during tensioning.

nLift the tip of the bar up to check for sag. Release the tip of the bar, and turn the chain tensioning screw 1/2 turn clockwise. Repeat this process until sag does not exist.

nHold the tip of the bar up and tighten the bar nut securely.

nChain is correctly tensioned when there is no slack on the underside of the bar, the chain is snug, but it can be turned by hand without binding.

NOTE: If chain is too tight, it will not rotate. Loosen the bar nut slightly and turn adjusting screw 1/4 turn counter- clockwise. Lift the tip of the bar up and retighten bar nut.



CHAIN



CHAIN

ROTATION

SPROCKET



BAR NUT

Fig. 18

CHAIN

TENSIONING SCREW

Fig. 19

BAR NUT

Fig. 20

15
