Snapper 421823BVE, W421623BVE important safety instructions Belt Replacement

Page 26

Section 4 - ADJUSTMENTS & REPAIR

WARNING

DO NOT attempt any adjustments, maintenance, service or repairs with the engine running. STOP engine. STOP blade. Engage parking brake. Remove key. Remove spark plug wire from spark plug and secure away from plug. Engine and components are HOT. Avoid serious burns, allow all parts to cool before working on machine. Fuel Filler Cap and vent must be closed securely to prevent fuel spillage.

4.5.2. BELT REPLACEMENT

1.Follow WARNING statement found on this page.

2.Check fuel level in tank. If over 3/4 full, remove tank. Refer to Section “REMOVING FUEL TANK”. If 3/4 or less, proceed to next step.

3.Carefully stand Rear Engine Rider on rear bumper.

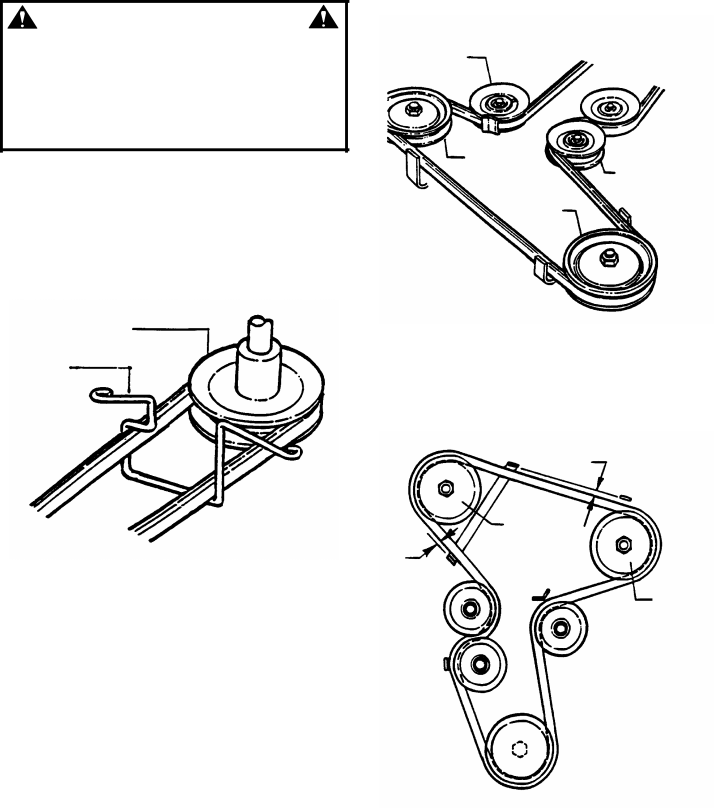

4.Route new belt through engine belt guide up to engine pulley. See Figure 4.14.

ENGINE

DRIVE

PULLEY

ENGINE

BELT

GUIDE

FIGURE 4.14

5.Move transmission shift lever to the neutral (N) position.

6.Rotate clutch yoke (clutch yoke shown in Figure 4.10) out with your hand and work belt between drive disc and rubber driven disc.

7.To clear the primary chain case, move transmission shift lever to the #5 position. Route belt around drive disc and into drive pulley belt groove. See Figure 4.14.

8.Remove idler. See Figure 4.15.

9.Route belt onto spindle pulley. Make sure belt is inside spindle belt guide and idler belt guide. Route belt as shown in Figure 4.15.

10.Reinstall idler removed in Step 8. The idler belt guide tab should be positioned in the hole located on idler arm. Tighten idler pulley bolt securely.

REMOVE

STATIONARY

IDLER

RIGHT

REMOVE

SPINDLE

TENSION



IDLER

LEFT



SPINDLE



FIGURE 4.15

11.Adjust belt guide. See Figure 4.16 for proper belt- to-belt guide clearances.

12.Reinstall mower drive belt cover.

1/16

LEFT

SPINDLE

1/16”

RIGHT

SPINDLE

FIGURE 4.16

26
