CONNECTION

FM INDOOR ANTENNA

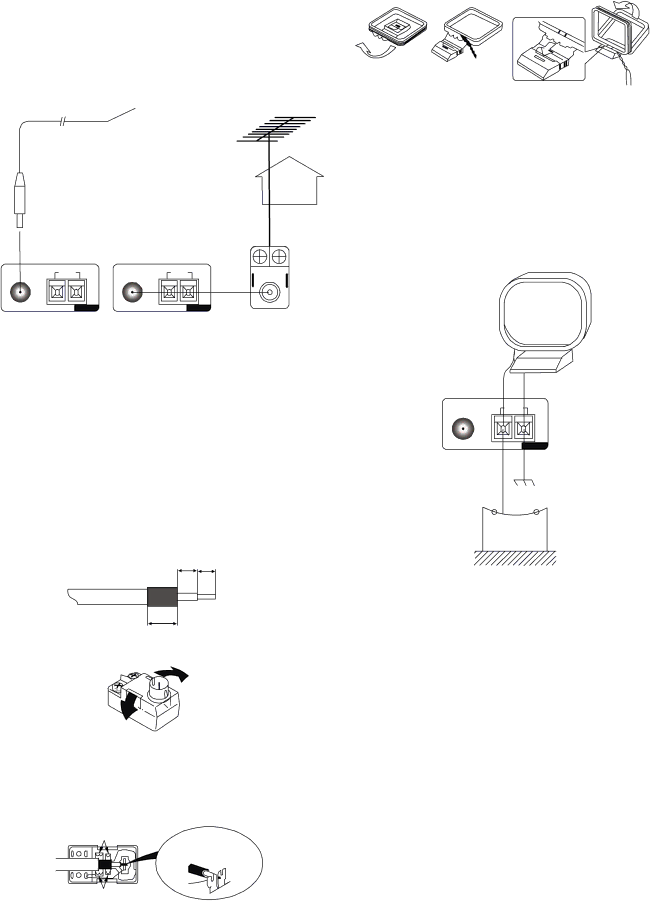

If you live reasonably close to a transmitter and want to use the provided lead-type FM antenna, you will have to connect it direct to the “FM 75” socket.

Fit the metal sleeve of the lead-type antenna over the core (center) conductor of the (FM 75) socket, extend the lead and fix it to a window frame or wall with thumbtacks, or the like, where reception is best.

Lead-type FM 75 Antenna provided.

FM	AM	FM	AM
FM	LOOP	FM	LOOP
75Ω	LOOP	75Ω	LOOP
	ANTENA		ANTENA

Optional

OUTDOOR FM ANTENNA (75)

FM OUTDOOR ANTENNA

In an area where FM signals are weak, it will be necessary to use a 75 unbalanced-type outdoor FM antenna using the optional matching transformer, as shown. Generally, a 3-element antenna will be sufficient: if you live in an area where the FM signals are particularly weak, it may be necessary to use one with 5 or more elements. Connect the coaxial cable of the antenna to the matching transformer as shown. After completing connection, plug the transformer into the “FM 75” socket.

How to connect a coaxial cable to the matching transformer - Strip the cable and dress it as shown.

4mm 3mm

7mm

-Press both side tabs outward to remove the cover.

-Wrap the core conductor around the central metal fixture as shown.

-Crimp the jagged metal fixtures so they hold the braided portion using pliers, etc.

-Put the cover back in place.

Jagged metal

Insert into slit.

AM INDOOR LOOP ANTENNA

- To stand the antenna on a flat surface, fix the claw to the slot.

12 3

-The high performance AM loop antenna provided with this unit is sufficient for good reception in most areas.

-Connect the loop antenna’s wires to the AM antenna terminals as shown.

-Place the antenna on a shelf or hang it on a window frame, etc, in the direction which gives the best reception and as far away as possible from the entire system, speaker cords and the power cords, to prevent unwanted noise.

AM Loop Antenna (provided)

FM		AM
75	Ω	LOOP

ANTENA

AM Outdoor

Antenna

AM Outdoor Antenna

If the AM loop antenna provided does not deliver sufficient reception (because you are too far from the transmitter or in a concrete building, etc.), it may be necessary to use an outdoor AM antenna.

Use an insulated wire more than 15 ft (5m) long, strip one end, and connect this to the terminal as shown.

The antenna wire should be strung outdoors or indoors near a window. For better reception, connect the GND terminal to a reliable ground.

Note: When connecting an outdoor AM antenna, do not disconnect the AM loop antenna.

Jagged metal
