OPERATION

The operation of any tiller can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields before starting your tiller and while tilling. We recommend a wide vision safety mask for over spectacles or standard safety glasses.

00155

HOW TO USE YOUR TILLER

Know how to operate all controls before adding fuel and oil or attempting to start engine.

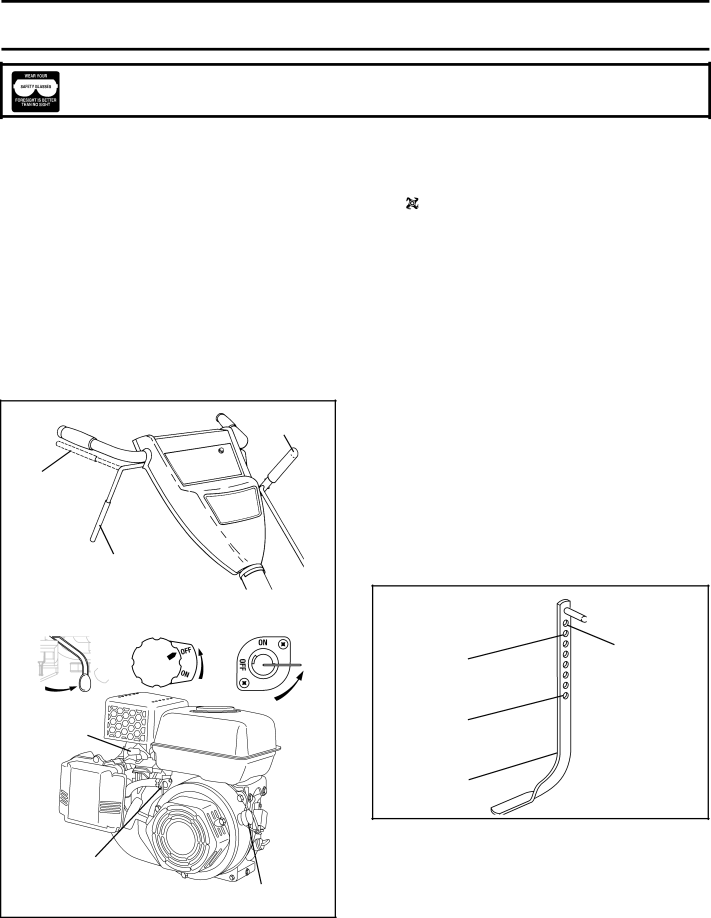

STOPPING (See Fig. 9)

TINES

1.Release drive control to stop movement.

2.Move shift lever to “N” (neutral) position.

ENGINE

2.Move throttle control to “SLOW” position and allow the engine to run slowly for cool down.

3.Turn the engine switch to the "OFF" Position.

4.Turn the fuel valve lever to the "OFF" Position.

NOTE: NEVER USE CHOKE TO STOP ENGINE.

IMPORTANT: TO STOP ENGINE IN AN EMERGENCY, TURN THE ENGINE SWITCH TO THE OFF POSITION.





SHIFT





LEVER

DRIVE CONTROL





BAR





“ENGAGED”





POSITION





DRIVE CONTROL BAR



“DISENGAGED” POSITION



THROTTLE

ENGINE

FUEL

CONTROL

SWITCH

VALVE

TINE OPERATION - WITH WHEEL DRIVE

Always release drive control bar before moving shift lever into another position.

Tine movement is achieved by moving shift lever to

( ) till position and engaging drive control bar.

FORWARD - WHEELS ONLY/TINES STOPPED

Release drive control bar and move shift lever indicator to “F” (forward) position. Engage drive control bar and tiller will move forward.

REVERSE - WHEELS ONLY/TINES STOPPED

DO NOT STAND DIRECTLY BEHIND TILLER.

Release the drive control bar.

Move throttle control to “SLOW” position.

Move shift lever indicator to “R” (reverse) position.

Hold drive control bar against the handle to start tiller movement.

HARD TO SHIFT GEARS

Briefly engage drive control bar and release or rock tiller forward and backward until are able to shift gears.

DEPTH STAKE (See Fig. 10)

The depth stake can be raised or lowered to allow you more versatile tilling and cultivating, or to more easily transport your tiller.

THROTTLE

CONTROL

SHALLOWEST TILLING (CULTIVATING)

DEEPEST

TILLING

DEPTH

STAKE

TRANSPORT

POSITION













2











_









e









k









ta









s









_











pth













FUEL

VALVE

ENGINE

SWITCH

Fig. 9

Fig. 10

TILLING (See Fig. 11)

Release depth stake pin. Pull the depth stake up for increased tilling depth. Place depth stake pin in hole of depth stake to lock in position.

Place shift lever indicator in ()till position.

Hold the drive control bar against the handle to start tilling movement. Tines and wheels will both turn.

8

Image 8
Contents RTT900 Safety Rules Maintenance and StorageTraining PreparationTable of Contents OPERATOR’S Position See Fig AssemblyTools Required for Assembly Install Handle See Figs , 4, Unpacking Carton See FigAttach Clutch Cable See Fig Connect Shift ROD See FigRemove Tiller from Crate Check Tire PressureKnow Your Tiller Meets Ansi Safety RequirementsOperation HOW to USE Your Tiller Tine Operation with Wheel DriveForward Wheels ONLY/TINES Stopped Reverse Wheels ONLY/TINES StoppedTurning To TransportBefore Starting Engine Fill Engine with OIL See FigADD Gasoline To Start Engine See FigCultivating Tine Shear PinsTilling Hints Maintenance Lubrication ChartGeneral Recommendations Before Each USEAIR Cleaner See Fig EngineCleaning Cooling System See FigMuffler Spark PlugTire Care Service and AdjustmentsTiller Ground Drive Belt Adjustment S e e Fig To Replace Ground Drive Belt See FigsTine Replacement See Figs , 25 Storage OtherFuel System Engine OILTroubleshooting Points Repair Parts Handle AssemblyMAINFRAME, Left Side 532 42 84-10 TireMAINFRAME, Right Side KEY Part NO. NO. Description208cc Transmission19.5b Tine Shield Tine Assembly     Decals Service Notes Warranty Statement
