Orion 52084 instruction manual Mount, Computer

Page 6

Cooling fan

Power
input	USB cable
jack	USB cable

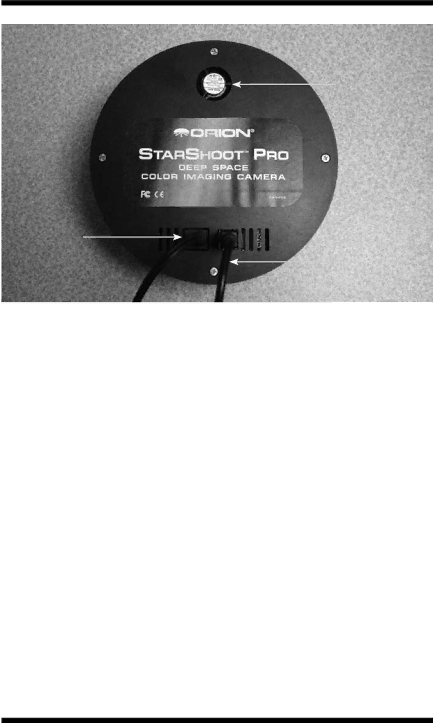

Figure 3. The 12VDC power cable and USB cable turn the camera on when plugged in.

Mount

Deep sky imaging with the StarShoot Pro requires an equatorial mount with a right ascension (R.A.) motor drive. The goal for your mount is to seamlessly track the apparent movement of the sky as the Earth rotates. The tracking must be very accurate, or the object you want to image will drift and blur across the camera’s field of view while the exposure is taken. Even a small amount of drift will cause a star to look oblong instead of a round point. We recommend using a high-quality equatorial mount which utilizes periodic error correction (PEC) or has the ability to interface with an autoguider.

Computer

The StarShoot Pro requires a PC to operate the camera. For astro-imaging in the field at night, a laptop computer is highly recommended. The included software is Maxim DL Essentials which requires Windows XP, or Windows Vista operating systems.

Note: The StarShoot Pro drivers and MaxIm DL Essentials do not support 64-bit operating systems

The following hardware is also required:

•Processor: 700 MHz speed or higher, Pentium™ III equivalent or higher

•Recommended minimum memory size is 512 MB

•Disk Space: 100 MB for program installation, 500 MB or more to store images is recommended

6

Image 6

Contents Orion StarShoot Pro Deep Space Color Imager Table of Contents Page System Requirements refer to Figure Parts ListGetting Started TelescopeSecuring ThumbscrewTelescope Mount ComputerSoftware Driver Installation PowerSoftware Installation Camera Driver Installation To install the camera driver on a Windows XP computerTo install the camera driver on Windows Vista computer Select Locate and install driver software recommendedGetting Started During Daylight Obtaining First ImagesPage Page Screen Stretch Window Astronomical Imaging Focusing Page Imaging Deep Sky Objects To startSet the Mode in the Camera Control Window to Dark Raw Dark FramesFlat Fields Set the Mode in the Camera Control window to Light Raw VignettingLight and Dark 2x2 Modes Select Setup Calibrate from the Process menuImage Processing Dark Frame CalibrationPage Select Setup Calibrate in the Process menu Flat Field CalibrationConvert Raw to Color Combining Deep Sky Images Page Combine Methods FilterColor Balance Stretch Recommended Processing Sequence Batch Process Batch Process windowUsing The StarShoot Pro as an Autoguider Guide tab Computer to Mount Connection Click OK in the Ascom Telescope Chooser window Camera Control Window, click on the Guide tabAutoguider Calibration Page Other Features of Maxim DL Essentials Multiple Camera Control for AutoguidingEdit Menu View Menu Window MenuTips Polar AlignmentHelp Menu Using Focal Reducers and Barlow Lenses Choosing a Site for Astro-imagingUSB Extension Cable Care and Maintenance FiltersSpecifications Appendix A. Troubleshooting Use the supplied USB cable first25.26 This is normalImages look very noisy overall Camera lost its connectionAppendix B. Field of View Quick Reference Guide 600mm 750mm 900mm 138.8’ X 90.6’ 111’ X 72.5’ 92.5’ X 60.4’ Telescope Focal Length 2032mm 3910mm Appendix C Summarized Procedure to Imaging Deep Sky Objects Camera Control Window, Subframe ResetProcess Calibrate Various processing commands are found in the Process menu Page Page One-Year Limited Warranty
