Page 43

User’s Manual

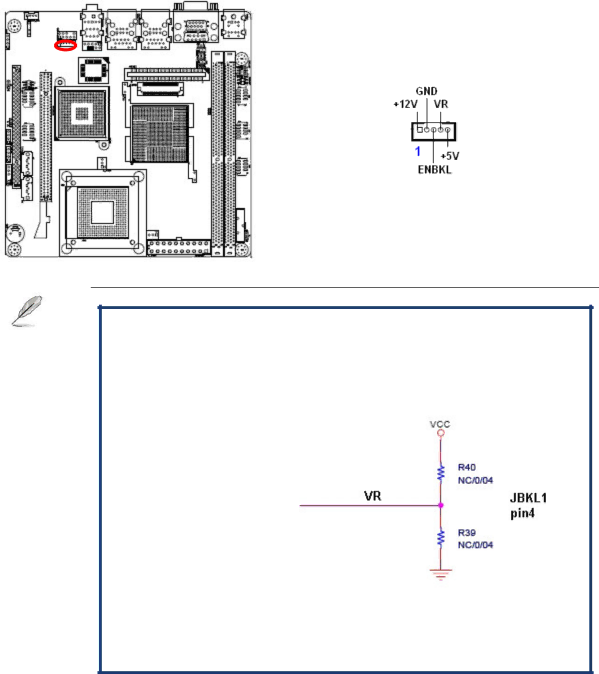

1.8.15LCD Inverter Connector (JBKL1)

￿Signal Description



Signal



Signal Description





VR



For inverter with adjustable Backlight









function, it is possible to control the LCD









brightness through the VR signal.







Vadj=0.75V ~ 4.25V







(Recommended: 4.7K￿, > 1/16W)













ENBKL

LCD backlight ON/OFF control signal











MX945GM2 43
