Hardware Installation
1.After completion of software setup, shut down your computer and disconnect all connected devices and peripherals.
2.Remove the cover from your computer. Refer to your computer manufacturer’s user manual for details on how to do this. Touch any bare metal portion of your computer case to discharge yourself of any static electricity. This prevents damage to your computer and the PCI Express Card.

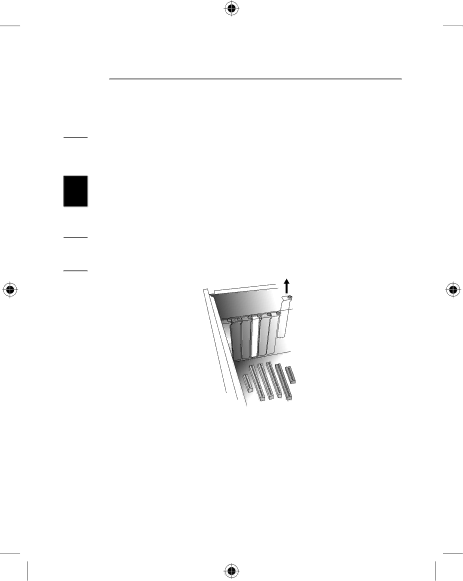

3.Locate the PCI Express slot on your computer’s main circuit board. Remove the metal plate that covers the rear slot corresponding to the PCI Express slot you have selected (see image below).
4.Remove the PCI Express Card from its protective anti- static packaging. Handle it by the metal bracket; do not touch the
