IBM 150P manual Manual, Activates automatic image adjustment

Page 22

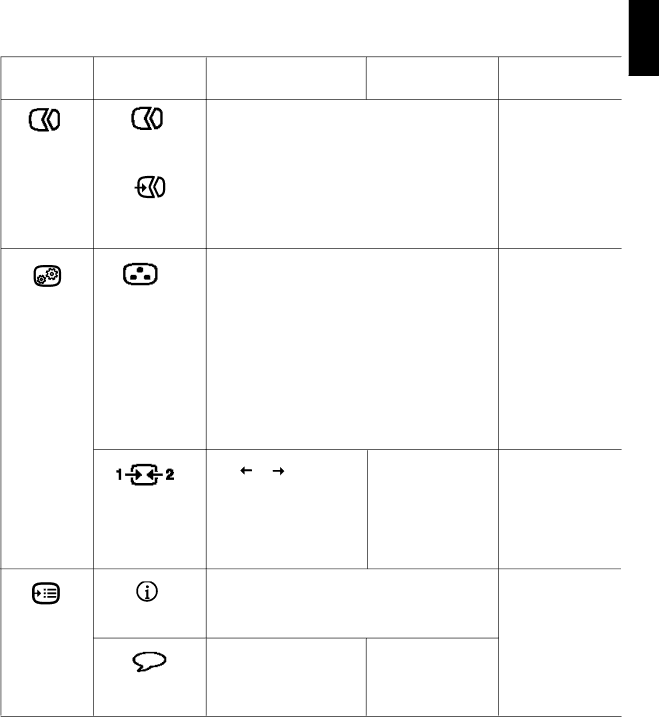

OSD Icon on Main Menu

Image Setup


Properties

Options

Submenu

Automatic

Manual

Clock

Phase

Color

1. Preset Mode

6500K

7200K

9300K

2. Custom

Red

Green

Blue

Input video signal

Information

Language

Description

Controls and

Adjustments (Analog)



Activates automatic image adjustment.

Use the or button to adjust away the interference. If satisfactory results are not obtained using the Phase adjustment, use the Clock adjustment and then use Phase again.

Adjusts intensity of red, green and blue.

6500K adjusts the screen more red.

7200K adjusts the screen to the default color settings.

9300K adjusts the screen more blue.

Increases or decreases 'red'.

Increases or decreases 'green'.

Increases or decreases 'blue'.

Use

or

to select video

1 - selects D-SUB

signa. (Analog or Digital.)

(Analog)

With this function, switch the

2 - selects DVI-Digital

screen from the analog to

the digital mode or vice versa.

(Digital)

The condition is that the graphic card used supports this function.

Shows resolution, refresh rate, and product details. Note: This screen does not allow any changes to the settings.

The language chosen affects

Select one of the 5

only the language of the OSD.

languages (English,

It has no effect on any

French, Italian, German

software running on the

and Spanish) to use for

computer.

the OSD.

Controls and

Adjustments (Digital)

Controls Locked

Controls Locked

Same as Analog

Same as Analog

COMPL & WARR JAPANESE ITALIANO ESPAÑOL DEUTSCH FRANÇAIS ENGLISH

20

Image 22
