Page 36

Device

Management

The Device Detail tab displays the Basic Information section, which shows information such as the internal IP address of the device and the current firmware version running on the device.

This tab also displays the Tasks section, which shows information about scheduled tasks. You can also upgrade firmware or run scripts from this section. For more information, see “Changing firmware from the portal web site” on page 44 and “Creating scripts” on page 46.

The Revision History tab allows you to search configuration revisions to find a configuration change that occurred on a device.

To view device information, go to Management > Device.

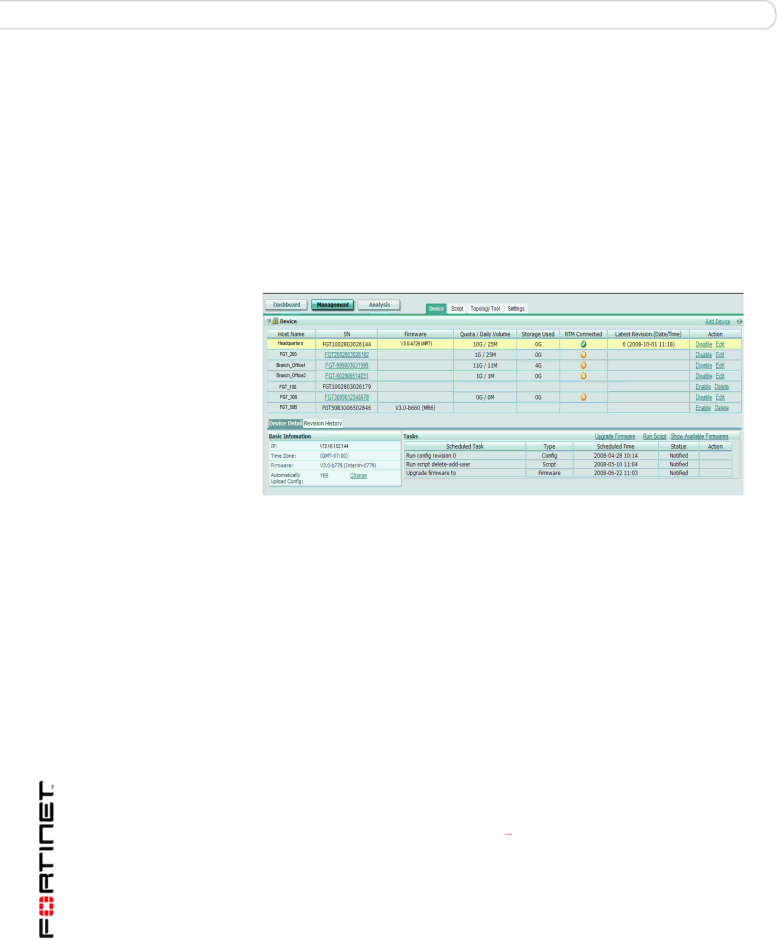

Figure 20: Devices in the Device section of the Device tab

Device section



Add Device

Add a device to the contract.

Host Name

The name you entered for your device. This name can be unique, or it



can be the default host name.



Select the device’s host name to view each device’s information.

SN

The serial number of the device.

Firmware

The firmware image currently running on the device. The firmware



image is displayed in the format:



V<version_number>-b<build_number>(<mainentance_



release_ number>)



Example: V3.0-b660(MR6).

Quota / Daily

Displays the daily volume and quota that is assigned to the device, in

Volume

the format <number>G/<number>M. Example, 8G/10M.

Storage Used

The amount of storage already used by the device.

RTM Connected

The connection status of the device. The orange X status indicates



that the device has authorized use of the service, but is not



connected. The green check mark indicates that the device is



authorized to use the service and is connected to the service.

Last Revision (Date/Time)

Action

The latest revision that occurred. The date and time format is <number_incremental>(yyyy:mm:dd hh:mm). For example,

3 (2008-05-13 12:16) means that the latest revision is the third in the list and that it occurred on May 13, 2008, at 12:16.

Revisions are given an incremental number, starting at 1 and increasing as revisions are created.

Select Disable to de-authorize the service to that device, or Enable to authorize it.

Select Edit to change the daily volume and quota amounts.

FortiGuard Analysis and Management Service Version 1.2.0 Administration Guide

36

13-12000-406-20081031
