FES 8916

Fanless Embedded Controller

CHAPTER 3 AMI BIOS UTILITY

This chapter provides users with detailed description how to set up basic system configuration through the AMIBIOS8 BIOS setup utility.

3.1 Starting

To enter the setup screens, follow the steps below:

1.Turn on the computer and press the <Del> key immediately.

After you press the <Delete> key, the main BIOS setup menu displays. You can access the other setup screens from the main BIOS setup menu, such as the Chipset and Power menus.

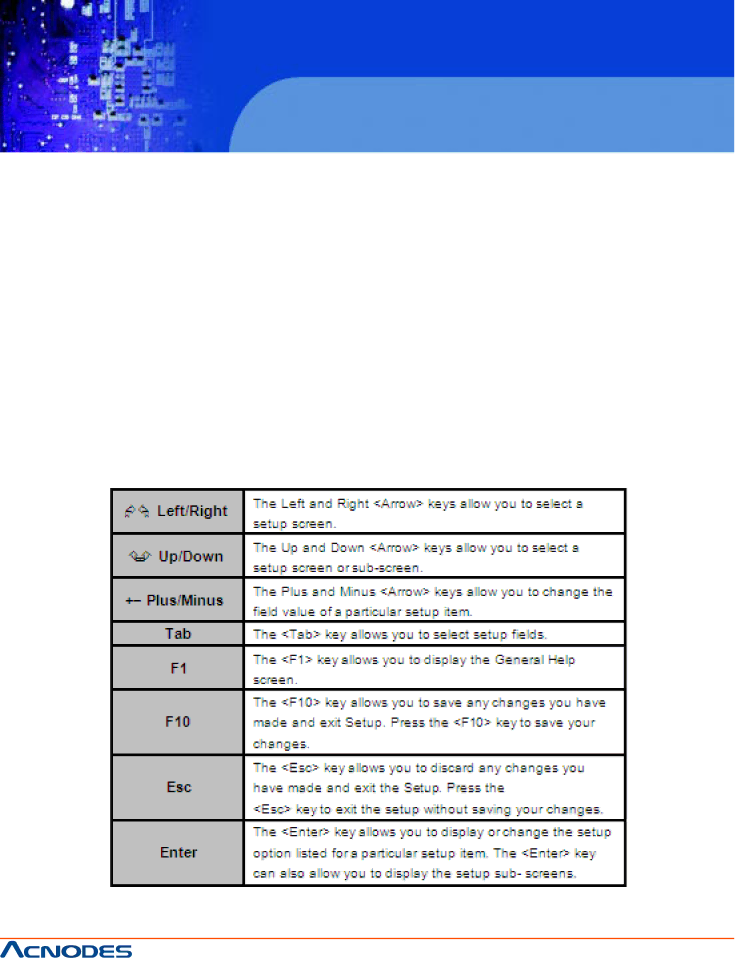

3.2 Navigation Keys
