Dell ST2410B, ST2310B, ST2210B appendix Using the Tilt

Page 24

1.Attach mechanism

2.Headphone connectors

3.Power indicator

4.Power/Volume control

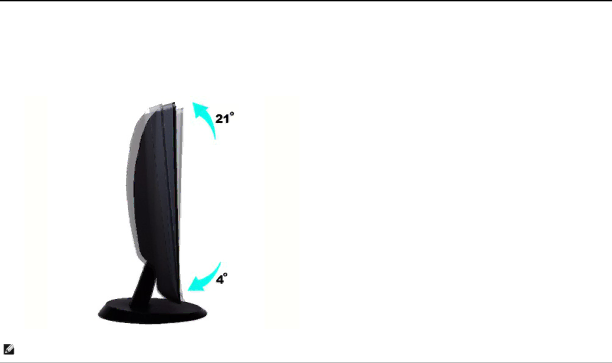

Using the Tilt

Tilt

With the built-in pedestal, you can tilt the monitor for the most comfortable viewing angle.

NOTE: The base is detached when the monitor is shipped from the factory.

Back to Contents Page
