APC SmartSlot Series instruction manual Introduction, SmartSlot Measure-UPS

Page 3

1. Introduction

The SmartSlot Measure-UPS II performs temperature and humidity sensing, as well as contact monitoring.

Measure-UPS II supports up to four zones of contact monitoring, each of which supports both normally open and normally closed contacts.

Measure-UPS II reports temperatures from 0 to 60 °C (32 to 140 °F) and relative humidity from 10 to 90%.

Measure-UPS II model AP9612T includes:

Measure-UPS II SmartSlot UPS accessory

Temperature probe (model AP9512T)

Screw terminal connector for contact monitoring

Hook and loop probe fasteners.

Measure-UPS II model AP9612TH includes:

The Measure-UPS II SmartSlot UPS accessory

Combined temperature and humidity probe (model AP9512TH)

Screw terminal connector for contact monitoring

Hook and loop probe fasteners.

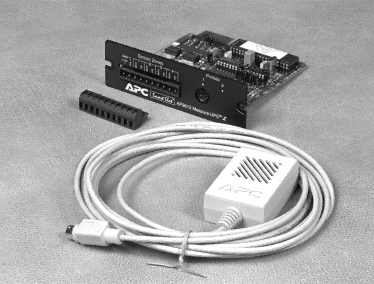

Figure 1, SmartSlot Measure-UPS II

Image 3
Contents Radio frequency interference Thank YouContents SmartSlot Measure-UPS IntroductionHardware and Software Compatibility Safety NoticeSmartSlot installation InstallationCompleted installation Operation Check Connection Information Sensor Zone ConnectionsPage Page Sensor Selection Maintenance Problem Possible Cause Solution TroubleshootingService Environmental SpecificationsElectrical PhysicalDeclaration of Conformity Life support policy Limited Warranty

SmartSlot Series specifications

The APC SmartSlot Series is a revolutionary lineup of power management solutions designed to enhance and optimize the performance of uninterruptible power supply (UPS) systems. These modular and versatile devices provide users with an array of features that enable efficient power management and monitoring, ultimately leading to increased reliability and uptime for critical systems.

One of the standout features of the SmartSlot Series is its modular design, which allows users to customize their UPS systems according to their specific needs. Each SmartSlot can accommodate a variety of add-on cards, including Network Management Cards (NMC), Environmental Monitoring Cards, and Serial Communications Cards. This flexibility ensures that businesses can adapt their power solutions as their requirements evolve, making it an ideal choice for organizations of all sizes.

The SmartSlot Series integrates advanced technologies that facilitate seamless communication and integration with IT infrastructure. Users can manage and monitor their UPS systems remotely, thanks to the intuitive web-based interfaces provided by NMCs. These cards not only allow for real-time monitoring of power conditions but also enable automatic alerts and notifications for potential issues such as overloads, battery failures, or temperature fluctuations. This proactive approach to power management minimizes downtime and enhances system resilience.

In addition to remote management capabilities, the APC SmartSlot Series benefits from advanced energy-efficient technologies. Features such as Hot-Swap capability ensure that users can easily replace or upgrade cards without interrupting power to connected devices. Furthermore, dynamic load balancing across connected devices maximizes the efficiency of power delivery, ensuring that critical systems receive optimal energy while extending the lifespan of the UPS.

The SmartSlot technology is also designed with security in mind. Built-in encryption protocols and access controls protect sensitive data and prevent unauthorized access to power management systems. This is especially crucial for businesses that handle sensitive information or operate within regulated industries.

In summary, the APC SmartSlot Series represents a cutting-edge solution for organizations seeking reliable and customizable power management systems. With its modular design, advanced communication technologies, energy efficiency features, and robust security protocols, it stands out as an essential component for maintaining operational continuity in today’s fast-paced digital environments. As businesses continue to rely on technology, investing in a SmartSlot-enabled UPS ensures that they are prepared for any power-related challenges that may arise.
