Linksys WCG200 manual Installing the USB Driver for Windows

Page 10

Installing the USB Driver for Windows 98

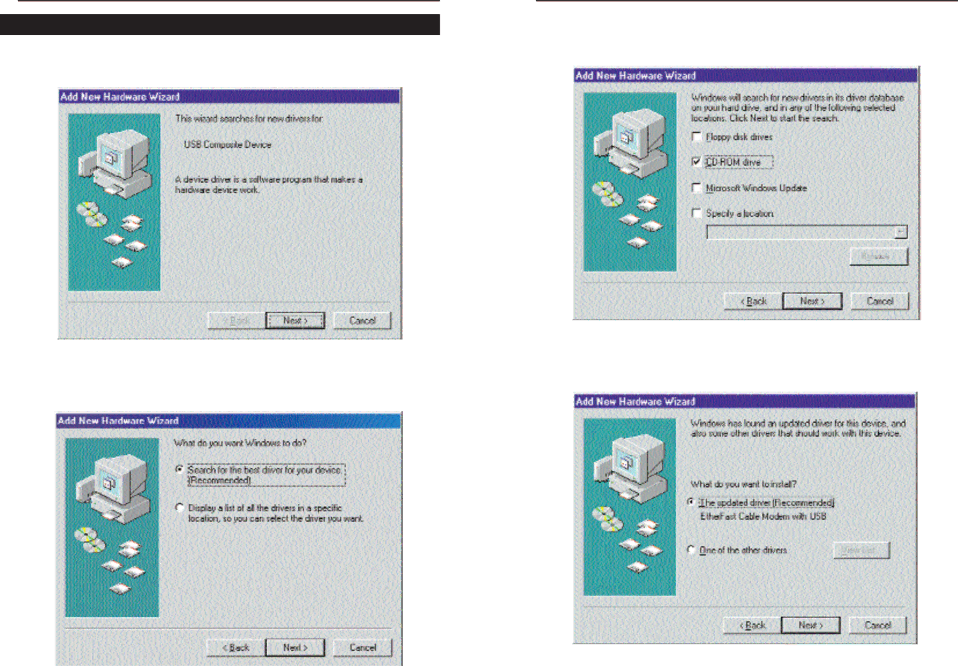

1.When the Add New Hardware Wizard window appears, insert the Setup CD into your CD-ROM drive and click Next.

Figure 3-1

2.Select Search for the best driver for your device and click the Next but- ton.

Figure 3-2

Wireless-G Cable Gateway

3.Select CD-ROM drive as the only location where Windows will search for the driver software and click the Next button.

Figure 3-3

4.Windows will notify you that it has identified the appropriate driver and is ready to install it. Click the Next button.

Figure 3-4

12

13
