Acer 5920G Series manual Removing the USB Board, Removing the CPU, Removing the Main Board

Page 67

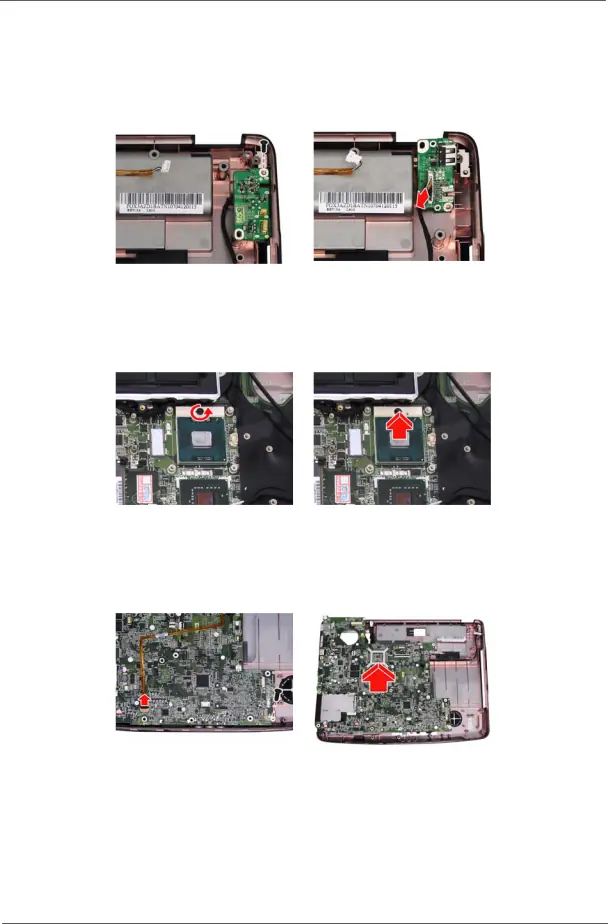

Removing the USB Board

Removing the USB Board

16.Remove the screw fastening the USB board.

17.Lift the USB board and disconnect the USB board cable.

18.Remove the USB board.

Removing the CPU

19.Use a flat screwdriver to release the CPU lock (Turn counter clockwise).

20.Remove the CPU from the CPU socket carefully.

Removing the Main Board

21.Remove the MIC cable and the screw fastening the main board to the lower case.

22.Remove the main board.
