Firewall

IP Filtering—Outgoing

The outgoing filter will block the LAN traffic from entering the WAN side. Click on the Add button to create filters.

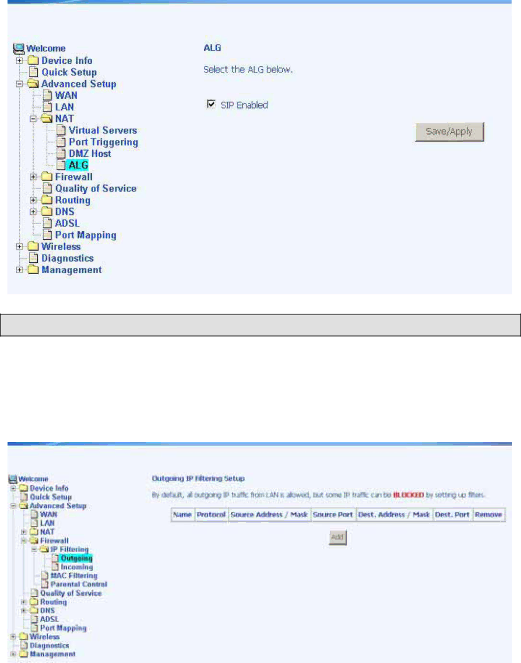

The below screen will appear when you click on Add. Input the filter name, source information (from the LAN side), and destination information (from the WAN side). Then click on Save / Apply.

ASUS 4-Port Wireless Ethernet Router

30

User Manual

Version 1.0



Document #: BD-AU0014-10
