Tripp Lite DWF2647X owner manual Assemble the Wall Plate, 2a. Mount on Wood Stud Wall

Page 4

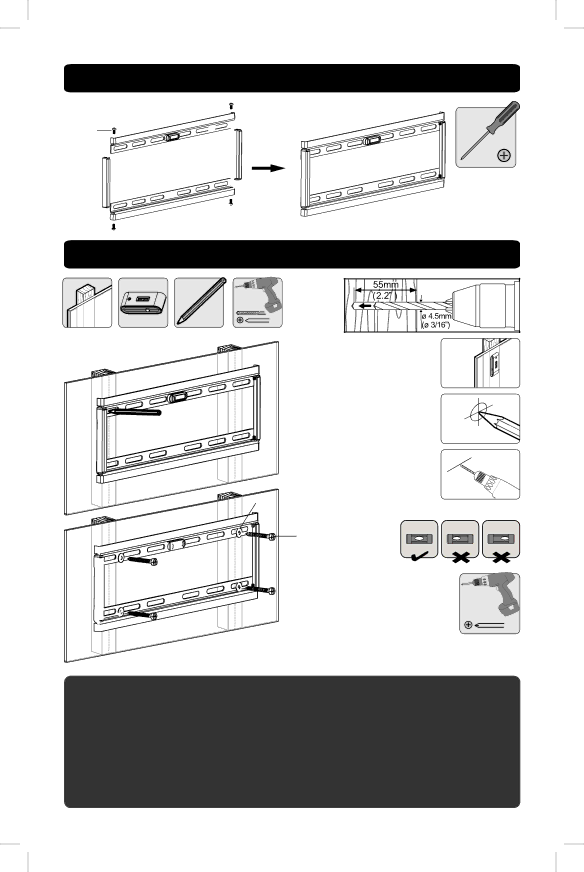

1. Assemble the Wall Plate

M5X10

2a. Mount on Wood Stud Wall

1

Find and mark the exact location of

mounting holes 2

3

D6 Washer

Drill pilot holes

Anchor Bolt

Screw the wall plate onto the wall

WARNING

•Make sure that mounting screws are anchored into the center of the studs.

Use of a stud finder is highly recommended.

•Installers are responsible to provide hardware for other types of mounting situations.

•Installers must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components.

4

13-09-233-93329F.indd 4

10/31/2013 11:59:41 AM
