Page 10

Basic Connection (Continued)

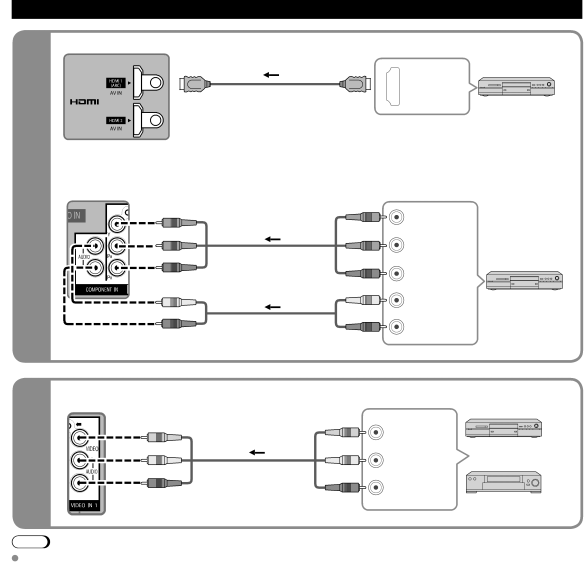

AV cable connections

High-Definition

Standard-Definition

To use HDMI terminals

AV Equipment

HDMI

AV OUT

e.g. Blu-ray Disc player

Connecting to the HDMI terminals will enable you to enjoy high-definition digital images and high-quality sound.

The HDMI connection is required for a 1080p signal. For “VIERA LinkTM connections”, please refer to p. 31.

To use COMPONENT terminals





Y





green

green

green

COMPONENT







PB



blue

blue

blue

VIDEO OUT

AV Equipment

red



PR



red

red















L



e.g. Blu-ray Disc

white

white

white

AUDIO

player

red



R

OUT



red

red





To use COMPOSITE terminals









AV Equipment

yellow

yellow

yellow

COMPOSITE

e.g. DVD Recorder





L

or

white

white

white

OUT



red



R





red

red



e.g. VCR





Note

For more details on the external equipment’s connections, please refer to the operating manual for the equipment.

10
