Page 12

Installation

NOTE: All cables shown are not included with the TV

VCR Setup

-To avoid picture noise (interference), leave an adequate distance between the VCR and TV

-Use the ISM Method (on the Option menu) feature to avoid having a fixed image remain on the screen for a long period of time. Typically a frozen still picture from a VCR. If the 4:3 picture format is used; the fixed images on the sides of the screen may remain visible on the screen.

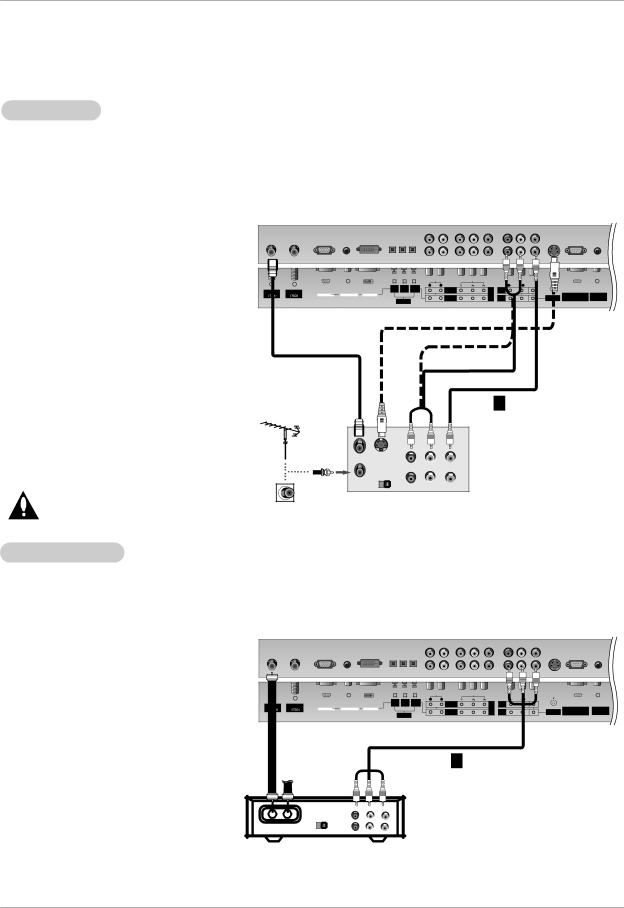

Connection Option 1

Set VCR output switch to 3 or 4 and then tune TV to the same channel number.

Connection Option 2

1.Connect the audio and video cables from the VCR's output jacks to the TV input jacks, as shown in the figure.

When connecting the TV to VCR, match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red).

If you connect an S-VIDEO output from VCR to the S-VIDEO input, the picture quality is improved; compared to connecting a regular VCR to the Video input.

2.Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner’s manual.)

3.Select the input source with using the TV/VIDEO button on the remote control. (If connected to A/V INPUT 1, select Video 1 input source)

Do not connect to both Video and

S-Video at the same time.

AUDIO INPUT

VIDEO INPUT









DVI



COMPONENT1

R

L



R AUDIO

L

VIDEO













INPUT

OUTPUT

INPUT



COMPONENT 2



MONITOR









Antenna 1

Antenna 2

RGB INPUT







DVD

OUTPUT













AUDIO INPUT

DVI INPUT









/DTV

A/V





RS-232C INPUT

REMOTE



















INPUT



S-VIDEO









DIGITAL AUDIO





COMPONENT 1



INPUT1

(MONO)

(CONTROL/SERVICE)

CONTROL









(OPTICAL)



















1







2

ANT OUT







ANT IN

S-VIDEO

OUT

VCR





OUTPUT

(R) AUDIO (L)

VIDEO

SWITCH





3

4

IN



Cable TV Setup

-After subscribing to a cable TV service from a local provider and installing a converter, you can watch cable TV programming. The TV cannot display TV programming unless a TV tuner device or cable TV converter box is connected to the TV.

-For further information regarding cable TV service, contact your local cable TV service provider(s).

Connection Option 1

1.Select 3 or 4 with channel switch on cable box.

2.Tune the TV channel to the same selected output channel on cable box.

3.Select channels at the cable box or with the cable box remote control.

Connection Option 2

1.Connect the audio and video cables from the Cable Box's output jacks to the TV input jacks, as shown in the figure.

When connecting the TV to a Cable Box, match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red).

2.Select the input source with using the TV/VIDEO button on the remote control. (If connected to A/V INPUT 1, select Video 1 input source)

3.Select your desired channel with the remote control for cable box.















AUDIO INPUT

VIDEO INPUT

















DVI



COMPONENT1

R

L



R AUDIO

L

VIDEO











INPUT

OUTPUT

INPUT



COMPONENT 2



MONITOR







1

Antenna 2

RGB INPUT







DVD

OUTPUT







AUDIO INPUT

DVI INPUT









/DTV





RS-232C INPUT

REMOTE



















INPUT

A/V











DIGITAL AUDIO





COMPONENT 1



INPUT1

(MONO)

S-VIDEO(CONTROL/SERVICE)

CONTROL









(OPTICAL)

















1

2



OUTPUT

(R) AUDIO (L)

VIDEO









SWITCH

TV





3

4





RF

Cable



VCR



Cable Box

12 Plasma TV
