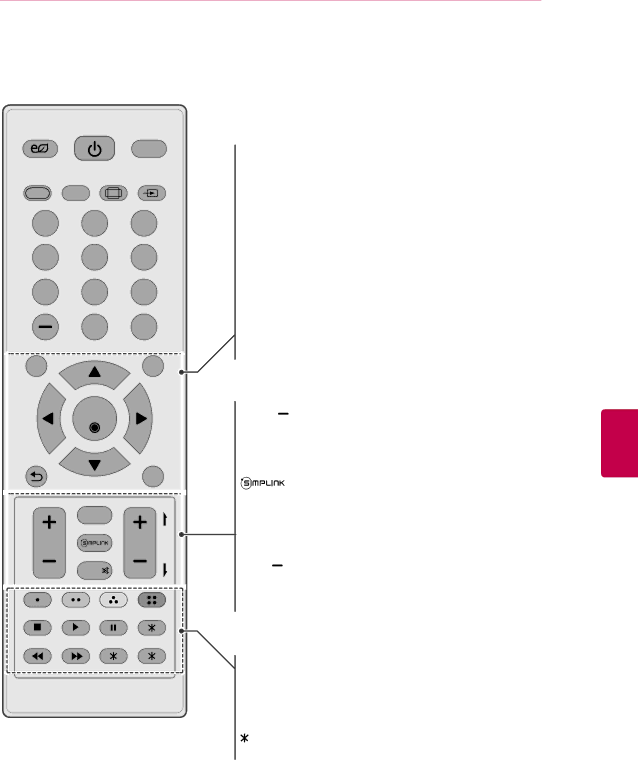

REMOTE CONTROL 41

ENERGY POWER

TV

SAVING

AV MODE INFO RATIO INPUT





























FLASHBK



LIST







SETTINGS



Q.MENU



OK









EXIT



FAV





VOL



CH

P



A



G



MUTE



E







SETTINGS

Accesses the main menu.

Q.MENU

Accesses the quick menu.

Navigation buttons (up/down/left/right)

Scrolls through menus or options.

OK

Selects menus or options and confirms your input.

(BACK)

Returns to the previous level.

EXIT

Clears all on-screen displays and returns to TV viewing.

VOL

Adjusts the volume level.

FAV

Accesses your favorite channel list.

Accesses the AV devices connected to the TV; Opens the SIMPLINK menu.

MUTE

Mutes all sounds.

CH

Scrolls through the saved channels.

PAGE

Moves to the previous or next screen.

Color buttons

These access special functions in some menus.

ENGLISH

Control buttons

Controls the SIMPLINK compatible devices (USB,SIMPLINK).

Not functional.
