Extron electronic 60-161-01 specifications Specifications, Supplied Cables and Adapters

Operation and Specifications

Compatibility

The INERTIA is a multi-scanning device that accepts inputs in the 31 - 71 kHz frequency range. The INPUT FORMAT LEDs are a general indication of the input signal frequency range.

Input LED	Computer	Resolution	Horiz.	Vert.
❍❍❍●	VGA 2	640 x 400	31.5 kHz	70Hz
❍❍●❍	VGA 3 (pass thru)	640 x 480	31.5	60
❍❍●●	VESA 1	800 x 600	35.0	56
●❍❍❍	VESA 2	640 x 480	37.9	72
❍●●●	VESA 3	1024x768	48.4	60
❍●❍❍	VESA 5	800 x 600	37.9	60
●❍❍●	VESA 6	800 x 600	48.1	72
❍●❍●	MAC 13" / 14" display	640 x 480	35.0	67
●❍●❍	MAC 16" display	832 x 624	49.7	75
●●●❍	MAC 19" display	1024x768	60.2	75
●●●●	MAC 21" display	1152x870	68.7	75
❍●●❍	IBM 8514/XGA	1024x768	35.5	87
●❍●●	SUN	1152x900	61.8	66
●●❍●	SUN	1152x900	71.7	76
❍●●●	SGI	1024x768	48.0	60
❍❍❍✵	SGI	1280x1024	63.9	60

❍= Off; ●= On; ✵= Blinking LED. LEDs sequencing = input range exceeded, LEDs all off = no signal, improper connection, etc.

Specifications

Input Signals

Computer Compatibility: SUN, SGI, PowerPC, Super VGA, Radius, Quadra, MAC SERIES, Super MAC, and E-Machine graphics from 31 to 71 kHz (multi-scanning).

	Video	0.7 - 1.0 volts p-p
	Sync	Composite sync (±), Sync on Green (±),
	.......	Horizontal and Vertical (±)
Input freq. compatibility		31-71 kHz (multi-scanning)
Maximum Resolution		1280 x 1024
Output Signals	Video	BNC - RGBS, 15-pin HD = VGA or SVGA
	Sync	BNC = Composite sync
	.......	15-pin HD = Composite or separate H&V
Output frequency		31.5 kHz VGA or 35 kHz SVGA (Switchable)
Output resolution		640 x 480 VGA or 800 x 600 SVGA (Switchable)
RGB video bandwidth		120 MHz (-3 db)
	Power Supply	100-240 VAC, 50/60 Hz external auto-switchable
	Dimensions	10"W x 11.5"D x 1.5"H (25 W x 29 D x 3.8 H cm)
Shipping Weight		9 lbs. (4 kg)
	Warranty	Two years parts/labor

Supplied Cables and Adapters

VGA Input Cable, 6' (1.8m)		.............................	Part Number 26-112-15
13W3/VGA return cable, 1' (0.3 m)			Part Number 26-371-01
13W3/VGA adapter			Part Number 26-372-01
MAC HV/VGA return cable, 1' (0.3 m)			Part Number 26-340-02
MAC HV/VGA adapter			Part Number 26-374-01
Page 3
	EXTRON ELECTRONICS	EXTRON ELECTRONICS, EUROPE		EXTRON ELECTRONICS, ASIA	79-07
	1230 S. Lewis Street	Beeldschermweg 6C		41B Kreta Ayer Road
	Anaheim, CA 92805	3821 AH Amersfoort		Singapore 089003	68-339-01
SM	(714) 491-1500 FAX (714) 491-1517	+31-33-453-4040 FAX +31-33-453-4050		+65-226-0015 FAX +65-226-0019	Rev. A
	U.S.A.	The Netherlands		Singapore

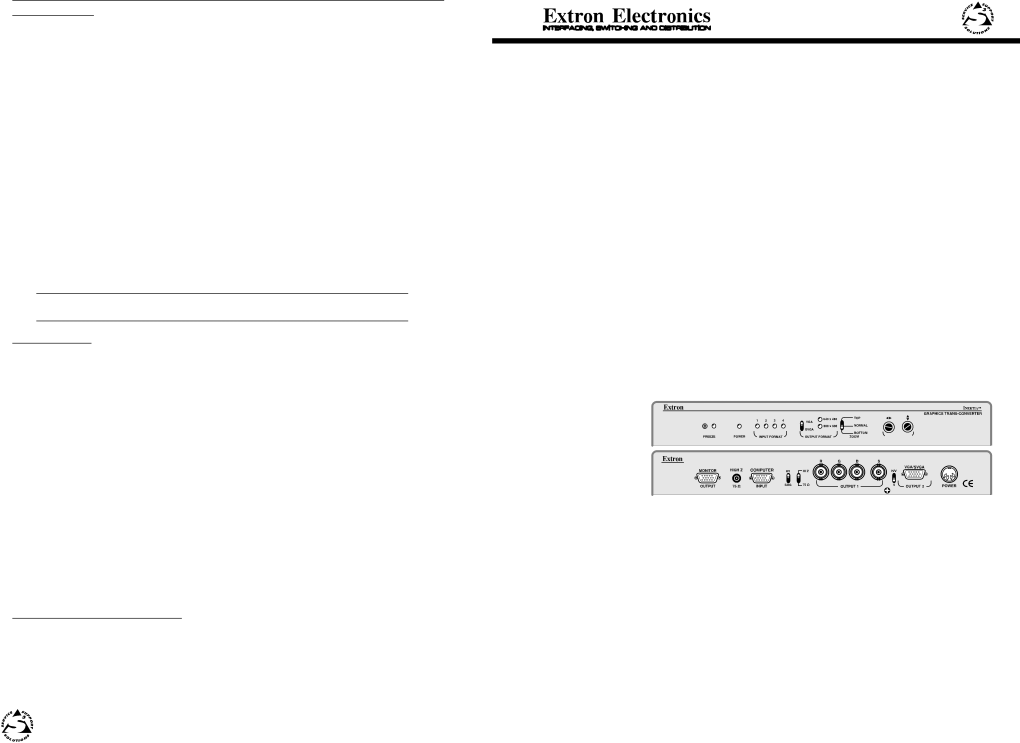

User's Guide

CENTERING

INERTIA

CAD Workstation

to VGA Graphics

Trans-Converter

P/N 60-161-01
