Getting to Know Your Camcorder

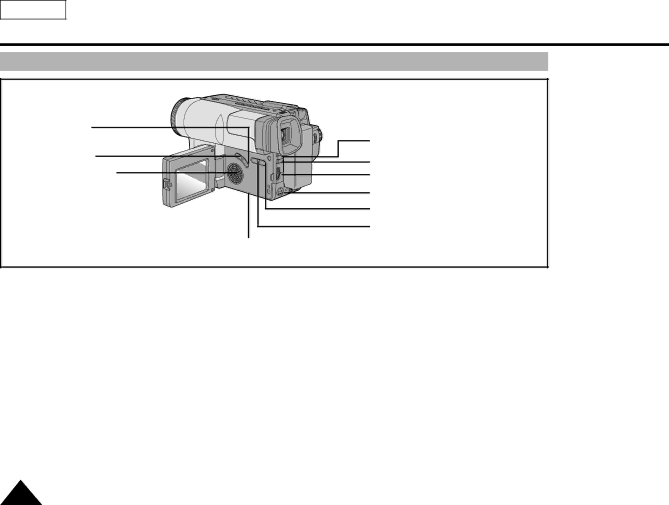

Side View

24.BLC

23.FADE

20.SPEAKER

22. LCD Open

14. MENU ON/OFF

15. ENTER (MF)

16. UP/DOWN Dial (VOLUME)

17. S-VIDEO out

18. P.AE

19. DSE

21. Lithium Battery

14.MENU ON/OFF (see page 30)

MENU ON/OFF works in CAMERA and PLAYER mode.

15.ENTER (MF) (see page 30) ENTER works in MENU mode.

MF works in CAMERA mode. (see page 40)

16.UP/DOWN dial (VOLUME)

UP/DOWN dial works in MENU mode. (see page 30) VOLUME works in PLAYER mode. (see page 60)

17.S-VIDEO out

18.PROGRAM AE (see page 42) PROGRAM AE (Auto Exposure) works in CAMERA mode.

19.DSE (see page 44)

DSE works in CAMERA and PLAYER mode.

20.SPEAKER (see page 60) Speaker works in PLAYER mode.

21.Lithium Battery (see page 21)

22.LCD open

23.FADE (see page 50)

FADE works in CAMERA mode.

24.BLC (see page 41)

BLC works in CAMERA mode
