AOC iF23 user manual Hotkeys

Page 19

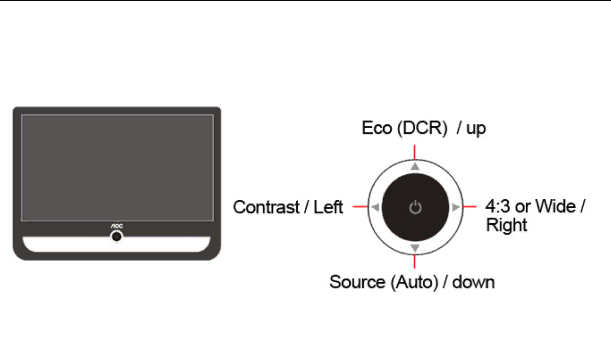

Hotkeys

Power Key

Press the Power button continuously about 2 second to turn off the monitor.

Eco Mode and DCR hot key

Press the Eco key continuously to select the Eco mode of brightness and DCR on when there is no OSD ( Eco mode hot key may not be available in all models).

Contrast adjustment hot key

When there is no OSD, press ◄ to active contrast adjustment bar, press ◄ or ► to adjust contrast. (Only for the models without speakers)

4:3 or wide image ratio hot key

When there is no OSD, press ◄ continuously to change 4:3 or wide image ratio. (If the product screen size is 4:3 or input signal resolution is wide format, the hot key is disable to adjust. )

Source hot key

When the OSD is closed, press Source (or Auto/Source) button will be Source hot key function (Only for the models with dual or more inputs). Press Source button continuously to select the input source showed in the message bar , press Menu/Enter button to change to the source selected.

Auto configure hot key

When the OSD is closed, press Auto/Source button continuously about 2 second to do auto configure (Only for the models with dual or more inputs).

19

Page 18 Page 20
Image 19
Page 18 Page 20
Contents IF23 Page Page National Conventions SafetyPower Installation Page Cleaning Other Contents in Box SetupSetup Stand & Base Adjusting Viewing Angle Connecting the Monitor Wall Mounting For Windows Vista AdjustingSetting Optimal Resolution Windows VistaClick Display Settings For Windows XP Windows XPFor Windows ME/2000 Click SettingsClick Settings Click Control Panel Windows ME/2000Hotkeys Basic and simple instruction on the control keys OSD SettingLuminance DCR Image Setup Clock 100 Adjust Picture Reduce Vertical-Line noise Phase Color Temperature Page Color Boost Page Picture Boost Page OSD Setup OSD Extra DDC-CI Reset Reset Yes or no Reset the menu to default Exit Status LED Color LED IndicatorWindows ME DriverMonitor Driver WindowsWindows XP Page Page Windows Vista Page Ckick on the Change display settings button Click the Advanced Settings button Page Page Menu Troubleshoot Colors RED, GREEN, or Monitor Is Stuck In ActiveOff-Mode Missing one of the primaryGeneral Specification SpecificationFREQUENCYkHZ FREQUENCYHz Preset Display ModesGND-B Pin AssignmentsPage Plug and Play Plug & Play DDC2B FeatureFCC Notice RegulationHG Declaration Weee DeclarationEpeat Declaration Warranty Statement for Europe ServicePage

iF23 specifications

The AOC iF23 is a modern monitor designed to cater to various computing needs, from casual use to professional applications. This display is part of AOC's commitment to delivering high-quality visual experiences with state-of-the-art technology and sleek aesthetics.

One of the standout features of the AOC iF23 is its 23-inch IPS (In-Plane Switching) panel. This technology is renowned for offering superior color accuracy and wider viewing angles compared to traditional TN (Twisted Nematic) panels. With a resolution of 1920x1080 pixels, the iF23 provides sharp and vibrant visuals, making it an ideal choice for graphic designers, gamers, and anyone who appreciates a crystal-clear display.

The AOC iF23 supports a refresh rate of 75Hz, which enhances the smoothness of on-screen motion, particularly during fast-paced gaming or video playback. This slight increase from the standard 60Hz provides an added layer of fluidity, making it attractive for both gaming enthusiasts and everyday users alike. Additionally, the monitor features a response time of 5ms, minimizing motion blur and ghosting effects during fast-moving scenes.

Connectivity is another strong suit of the iF23. The monitor includes multiple input options, including HDMI and VGA ports, ensuring compatibility with a wide range of devices, from laptops to gaming consoles. This versatility allows users to switch seamlessly between devices without the hassle of constantly plugging and unplugging cables.

Another noteworthy characteristic of the AOC iF23 is its design. The monitor is framed with slim bezels that enhance the overall aesthetic while allowing for a more immersive viewing experience. Its modern and minimalist look makes it a perfect fit for any office or home setup.

In terms of ergonomics, the AOC iF23 allows for tilt adjustments, providing users with the flexibility to find the perfect viewing angle. This feature is particularly beneficial for long hours of work or gaming, reducing strain on the neck and eyes.

The monitor also incorporates various eye-care technologies, such as Flicker-Free and Low Blue Light modes. These features mitigate eye fatigue, making the iF23 suitable for prolonged usage.

In summary, the AOC iF23 is a well-rounded monitor with an impressive combination of performance, aesthetics, and ergonomic design, making it a strong contender for anyone looking to enhance their computing experience. Whether for work or play, the iF23 delivers on all fronts, ensuring satisfaction for a diverse spectrum of users.
