Sony KV-27FS120 operating instructions Connecting a TV and Satellite Receiver, Satellite receiver

Page 24

Connecting a TV and Satellite Receiver

Connections

1

Satellite antenna cable

From cable/ antenna

2

Satellite receiver

Y

VIDEO 1

VIDEO 2

VIDEO 1

VIDEO 2

PB













L



L

PR













R



R

3

Rear of TV







AUDIO OUT

1

3

4

(VAR/FIX)

S VIDEO

Y







P B







P R





VIDEO







L

L

L



(MONO)



(MONO)



R

R

R

Audio R (red) Audio L (white)

Video (yellow)

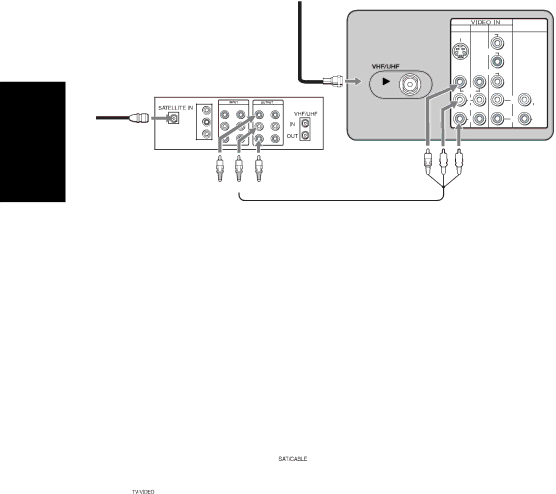

1 Connect the cable from your satellite antenna to SATELLITE IN on your satellite receiver.

2 Connect the coaxial cable from your cable service or antenna to the VHF/UHF jack on your TV.

3 Using audio/video cables (not supplied), connect AUDIO/VIDEO OUT on your satellite receiver to AUDIO/VIDEO IN on your TV.

Using your TV with this connection

This connection allows you to do the following:

Program your Sony remote control to operate your satellite receiver (see page 5).

To activate your remote, press (FUNCTION button) to operate your satellite receiver. See page 7 on how to operate other functions.

Press repeatedly to switch to satellite receiver input (VIDEO input).
