Specifications

Weight Capacity

350 lb.





Pedal U-Shaped

Bracket

Unpacking

When unpacking, make sure that the item is intact and undamaged. If any parts are missing or broken, please call Harbor Freight Tools at the number shown on the cover of this manual as soon as possible.

ASSEMBLY

Read the entire Important Safety Information section at the beginning of this manual including all text under subheadings therein before set up or use of this product.

Note: For additional information regarding the parts listed in the following pages, refer to the Assembly Diagram near the end of this manual.

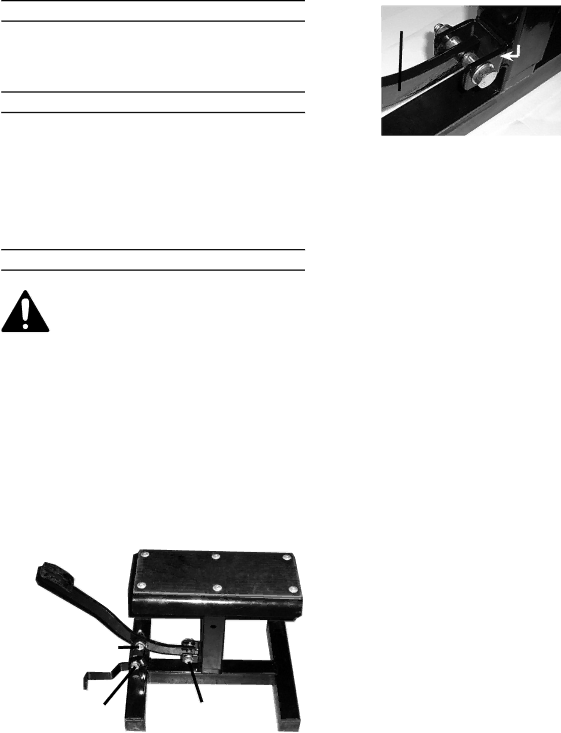

1.Make sure rubber end caps are se- cured into feet of Base (2).

Steps 4 and 5

Steps 6 and 7

Steps 2 and 3

Long

Bolt

2.Insert Long Bolt (6) through:

Washer (9);

One hole in U-shaped Bracket un- der Saddle (1);

Bushing (10);

Hole in end of Pedal (3);

Bushing (10);

Other hole in U-shaped Bracket;

Washer (9).

3.Secure Long Bolt with a Lock Nut (8).

4.Insert Short Bolt (7) through:

Washer (9);

Mounting Bracket (5);

Washer (9);

Remaining hole in Pedal (3);

Washer (9);

Remaining Mounting Bracket (5);

Washer (9).

5.Secure Short Bolt with a Lock Nut (8).

6.Insert remaining Short Bolt (7) through:

Washer (9);

Release Bar (4);

Washer (9);

Remaining hole in Mounting Brack- et (5);

Washer (9);

SKU 66552

For technical questions, please call 1-800-444-3353.

Page 4
