Life Fitness
TR95
manual
Cables Wax Lift Power Supply
General Assembly
Cables Wax Lift Power Supply
Page 17
TR95 Treadmill
TR95S-0070-30

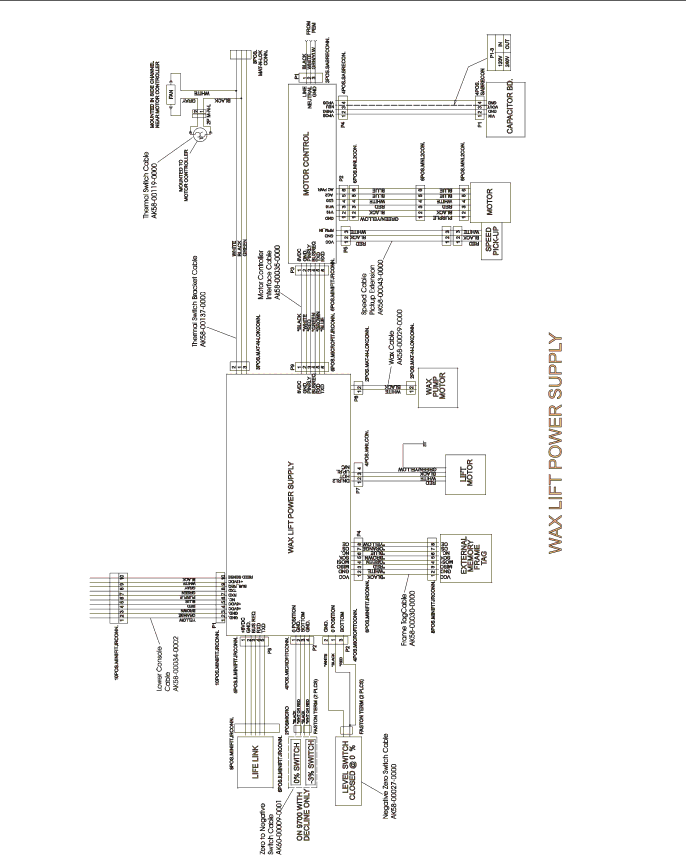

Cables – Wax Lift Power Supply
Page 17 of 18
Page 16
Page 18
Image 17
Page 16
Page 18
Contents
TR95 Treadmill TR95S-0070-30
General Assembly
Frame Assembly Components
Console External View
Console Internal View
Covers, End Caps, Hardware
Belt, Dek, Rear Roller
Lift Motor and Lift Frame
TOP View
Power Box Assembly
Motor Controller
Dual Fan Assembly
Motor Assembly
Waxing Components
TR95 Treadmill TR95S-0070-30
Lever Assembly AK58-00052-0000
Front Roller Assembly AK58-00066-0000
Ergo Bar Assembly AK58-00018-0000
Cables Message Center Console
Message Center Console
Cables Wax Lift Power Supply
Cables Power Modules
