Life Fitness manual SFB Signature Flat Bench Base Frame Assembly Legend

Page 8

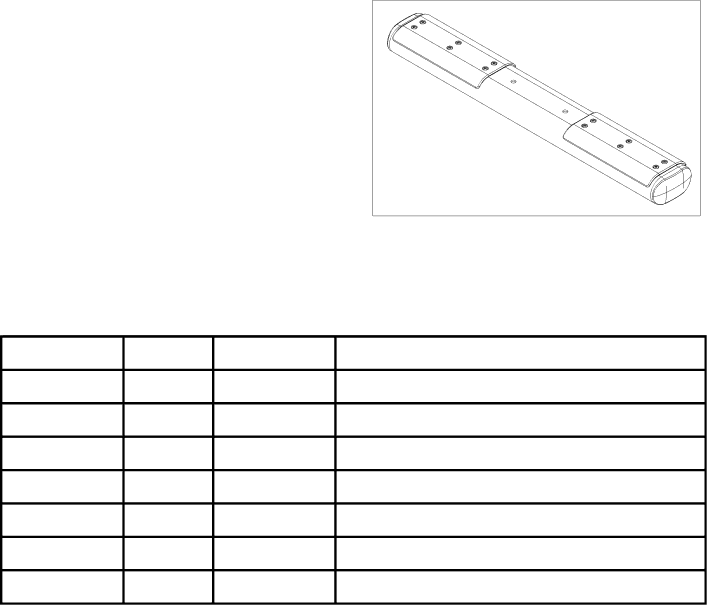

SFB SIGNATURE FLAT BENCH

BASE FRAME ASSEMBLY LEGEND

ITEM NO.

QTY.

PART NO.

DESCRIPTION

1

2

7800401

CAP, LRG FLOV END









2

2

7821702

GUARD PAINT









3

2

7810801

PAD, RUBBER FOOT









4

8

3114407

WASHER, SAE #10









5

20

3239102

SCREW, M5X12 PHL PAN TT ST BZ









6

1

78204XX

PTD ASSY, BENCH BASE









7

1

8106801

LABEL, SERIAL NUMBER, LARGE









Page 8
