Page 9

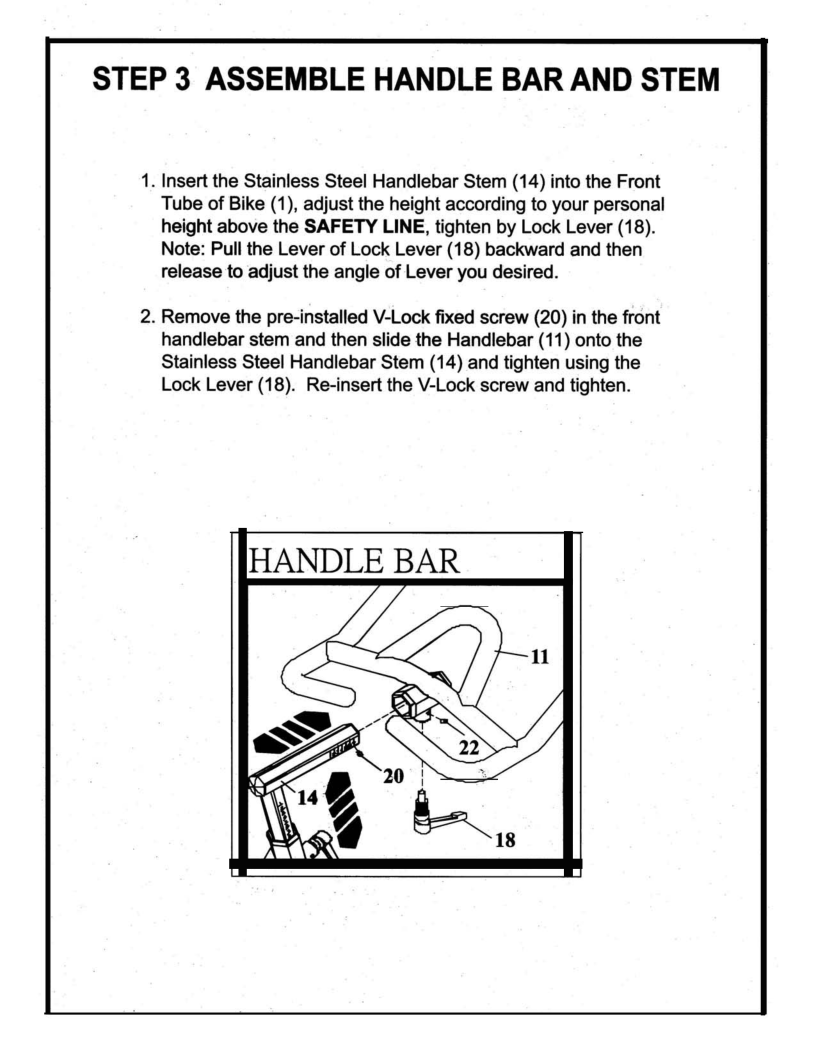

STEP 3 ASSEMBLE HANDLE BAR AND STEM

1.Insert the Stainless Steel Handlebar Stem (14) into the Front Tube of Bike (1), adjust the height according to your personal height above the SAFETY LINE, tighten by Lock Lever (18).

Note: Pull the Lever of Lock Lever (18) backward and then release to adjust the angle of Lever you desired.

2.Remove the pre-installed V-Lock fixed screw (20) in the front handlebar stem and then slide the Handlebar (11) onto the Stainless Steel Handlebar Stem (14) and tighten using the Lock Lever (18). Re-insert the V-Lock screw and tighten.

HANDLEBAR

11

20:

~18
