Kenmore 3405594 Secure Cable Bracket, Secure Drain Hose, Supply cord. Do not cut cable. Remove

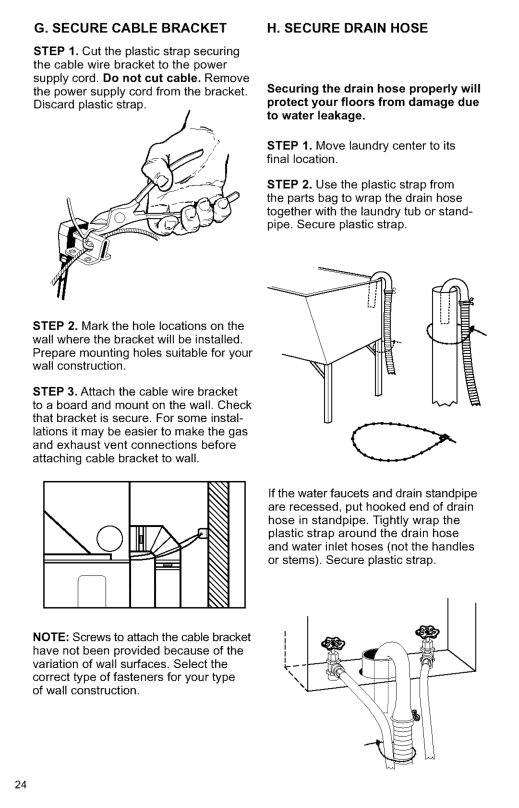

Page 24

G. SECURE CABLE BRACKET

STEP 1. Cut the plastic strap securing the cable wire bracket to the power

supply cord. Do not cut cable. Remove

the power supply cord from the bracket. Discard plastic strap.

H. SECURE DRAIN HOSE

Securing the drain hose properly will protect your floors from damage due to water leakage,

STEP 1. Move laundry center to its final location.

STEP 2. Use the plastic strap from the parts bag to wrap the drain hose

together with the laundry tub or stand- pipe. Secure plastic strap.

STEP 2. Mark the hole locations on the wall where the bracket will be installed.

Prepare mounting holes suitable for your wall construction.

STEP 3. Attach the cable wire bracket

to a board and mount on the wall. Check that bracket is secure, For some instal-

lations it may be easier to make the gas and exhaust vent connections before

attaching cable bracket to wall.

NOTE: Screws to attach the cable bracket

have not been provided because of the variation of wall surfaces, Select the

correct type of fasteners for your type of wall construction.

If the water faucets and drain standpipe are recessed, put hooked end of drain hose in standpipe. Tightly wrap the plastic strap around the drain hose and water inlet hoses (not the handles or stems). Secure plastic strap.

I

24
