I

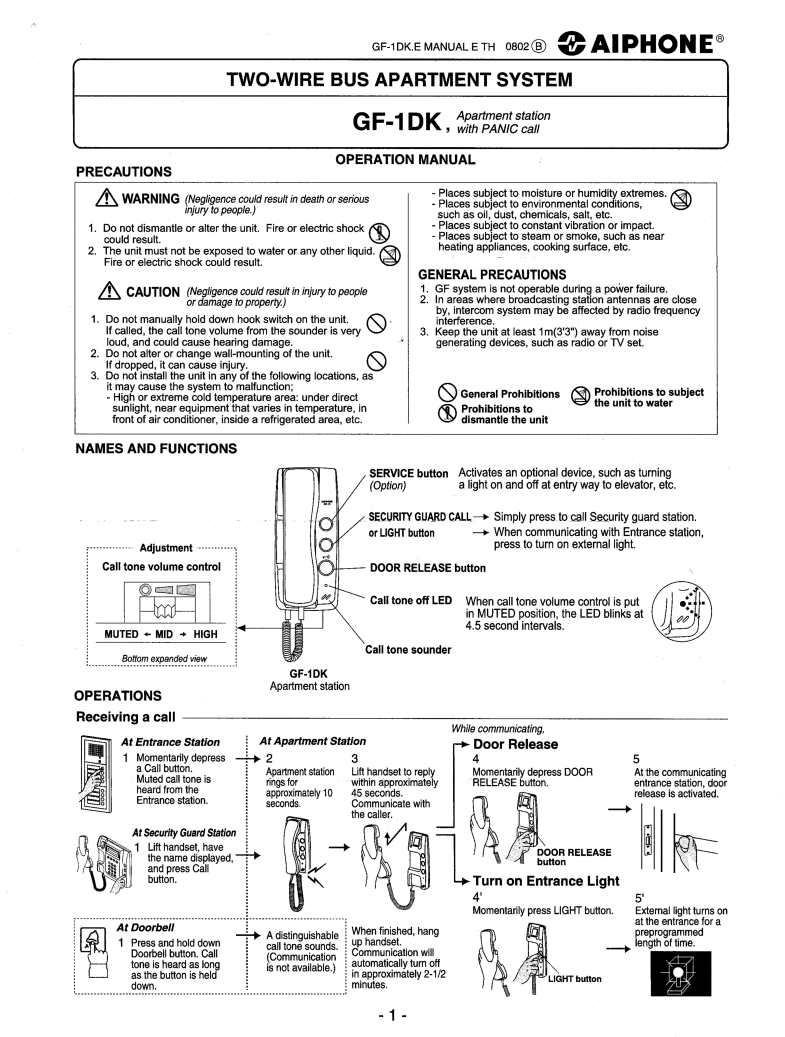

TWO-WIRE BUS APARTMENT SYSTEM I

	OPERATION MANUAL
PRECAUTIONS
A WARNING (Negligence could result in death or serious				- Places subject to moisture or humidity extremes.		@
	injury to people.)			- Places subject to environmental conditions,
				such as oil, dust, chemicals, salt, etc.
1.	Do not dismantle or alter the unit. Fire or electric shock			- Places subject to constant vibration or impact.
	could result.			- Places subject to steam or smoke, such as near
				heating appliances, cooking surface, etc.
2.	The unit must not be exposed to water or any other liquid.
	Fire or electric shock could result.		GENERAL PRECAUTIONS
A CAUTION (Negligence could result in injury to people
			1.	GF system is not operable during a power failure.
	or damage to property)		2.	In areas where broadcasting station antennas are close
1.	Do not manually hold down hook switch on the unit.			by, intercom system may be affected by radio frequency
			3.	interference.
	If called, the call tone volume from the sounder is very
	loud, and could cause hearing damage.	8% Keep the unit at least 1m(3'3") away from noise
		8		generating devices, such as radio or TV set.
2. Do not alter or change wall-mounting of the unit.
	If dropped, it can cause injury.
3. Do not install the unit in any of the following locations, as				8General Prohibitions
	it may cause the system to malfunction;				Prohibitionsto subject
	- High or extreme cold temperature area: under direct
	sunlight, near equipment that varies in temperature, in			Prohibitionsto	@the unit to water
	front of air conditioner, inside a refrigerated area, etc.			8dismantle the unit

NAMES AND FUNCTIONS

............. Adjustment ............,

iCall tone volume control i

i MUTED + MID + HIGH 7

Bottom exRanded view j

SERVICE button Activates an optional device, such as turning

(Option)a light on and off at entry way to elevator, etc.

SECURITY GUARD CALL+ Simply press to call Security guard station.

or LIGHT button ---+When communicating with Entrance station, press to turn on external light.

DOOR RELEASE button

Cali tone off LED When call tone volume control is put in MUTED position, the LED blinks at

4.5second intervals.

Call tone sounder

		GF-1 DK
OPERATIONS		Apartment station
Receiving a call
At Entrance Station		At Apartment Station
1 Momentarilydepress	i	2		3
a Call button.		Apartment station		Lift handset to reply
Muted call tone is	i	rings for		within approximately
heard from the	i	approximately 10		45 seconds.
Entrance station.				Communicate with
At Security Guard Sta	'
1 Lift handset, have
the name displayed,
and press Call
button.
..............................................	+,
At Doorbell		A distinguishable i		When finished, hang
1 Press and hold down
	:	call tone sounds.	j UP handset.
Doorbell button. Call	i				will
		(~ommun~cat~onCommunicationi
tone is heard as long	i	isnot available.)	j	automatically turn off
as the button is held	i		j	in approximately 2-112
down.			i	minutes.
......................................................................................			,

While communicating,

Door Release

4	5
Momentarily depress DOOR	At the communicating
	entrance station, door
	+release is activated.

RELEASE

Turn on Entrance Light

4'5'

n. External light turns on at the entrance for a preprogrammed

- 1 -
