Technician Troubleshooting Guide | Model 481BA |
89
6 7
3
5
Intracom
|
| OFF | ON |
|
|
| |
|
| VOLUME |
|
| 4 |
| 1 |
|
|
| |
|
| 2 |
|
|
| 3 | |
|
|

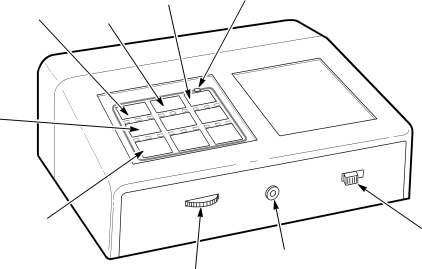

| |
| Figure 1. Operating Controls |
| |
|
|
| |
Key | Control Name | Function | |
|
|
|
|
|
|
|
|
1 | Power Switch | Provides power to mainstation. |
|
|
|
| |
2 | Power Indicator Light | Indicates power is on and the system is ready to operate. | |
|
|
| |
3 | Volume Control | Adjusts INCOMING audio level. | |
|
| NOTE: Volume level adjustments for alert tone and outside | |
|
| speakers are set by the installer. | |
|
|
| |
4 | Channel Selector Switches | These switches control talk/listen communication for | |
|
| numbered channels. Operator touches switch to talk and | |
|
| releases switch to listen. |
|
|
|
|
|
5 | Indicator Lights | Red indicates TALK mode. |
|
|
| Green indicates LISTEN mode. | |
|
| Yellow (steady) indicates channel on "HOLD." | |
|
| Yellow (flashing) indicates incoming call WAITING. | |
|
|
| |
6 | Hold Switch | Places selected channel in "HOLD" mode. | |
|
|
| |
7 | All Call Switch | Controls conversation with all channels simultaneously. | |
|
|
| |
8 | Standby Switch | Silences incoming audio to eliminate undesired background | |
|
| noise pickup when unit is not in use. Touching any | |
|
| CHANNEL SELECTOR SWITCH releases STANDBY | |
|
| mode. |
|
|
|
| |
9 | Standby Indicator Light | Indicates unit is in STANDBY mode. | |
|
|
|
|
|
|
|
|
