Graco TI8900a, TI8885a manual Pompes Dura-Flo 2400 avec moteur pneumatique NXT

Page 26

Caractéristiques techniques

LÉGENDE

A0,7 MPa, 7 bar (100 psi) pression d’air ou 10,5 MPa, 105 bar (1500 psi) pression hydraulique

B0,5 MPa, 4,9 bar (100 psi) pression d’air ou 7,5 MPa, 75 bar (1500 psi) pression hydraulique

C0,3 MPa, 2,8 bar (100 psi) pression d’air ou 4,2 MPa, 42 bar (1500 psi) pression hydraulique Fluide d’essai : Huile n° 10

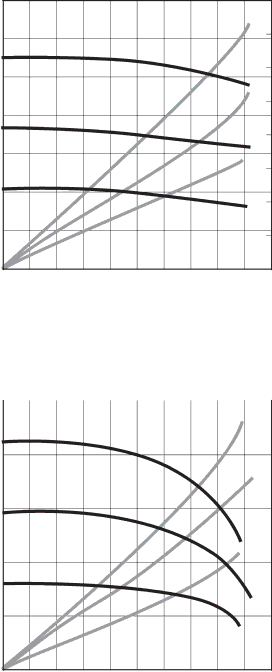

Pompes Dura-Flo 2400 avec moteur pneumatique NXT 3400

Pression produit

psi (MPa, bar) 1400 (9,8, 98)

1200 (8,4, 84)

1000 (7,0, 70)

800 (5,6, 56)

600 (4,2, 42)

400 (2,8, 28)

200 (1,4, 14)

0

Cycles par Minute

13

25

37

50

A

A

B

B

C

C

160



140



120

Débit

100

80

d’air

(SCFM)

60



40



20



2,0

4,0

6,0

8,0

10,0

(7,6)

(15,2)

(22,8)

(30,4)

(38,0)

Débit produit en gpm (l/min.)

Pompes Dura-Flo 2400 avec moteur pneumatique NXT 6500

Pression produit

psi (MPa, bar) 2500 (17,2, 172)

2000 (14,0, 140)

1500 (10,3, 103)

1000 (7,0, 70)

Cycles par Minute

13

25

37

50

A





A

B

B

C

C

250



200



150

Débit

d’air



100

(SCFM)



500 (3,5, 35)

0

50

2,0

4,0

6,0

8,0

10,0

(7,6)

(15,2)

(22,8)

(30,4)

(38,0)

Débit produit en gpm (l/min.)

26

312598B

Image 26
Contents Pompes Dura-Flo II 2 GFonctionnement Table des matièresModèles EntretienCinquième chiffre ModèlesPompes Dura-Floavec moteur pneumatique NXT ÉchappementRéf Bas de Moteur Pression maximum Pompes Dura-Flo avec moteur hydraulique Viscount Garniture Hydraulique MPa, bar psiMises en garde Mise EN GardeÉquipement DE Protection Personnelle Mise à la terre InstallationAccessoires de montage Rincer avant d’utiliser l’appareilAccessoires pour tuyauteries produit Accessoires de tuyauteries d’airAccessoires hydrauliques Typical Installation, Air-Powered Pumps Key Typical Installation, Hydraulic-Powered Pumps Key Verrouillage gâchette FonctionnementProcédure de dépressurisation DémarrageArrêt Robinet de purge et coupelle d’écrou de garnitureEntretien Guide de dépannage ProblèmeDémontage du bas de pompe RéparationOutillage nécessaire Remontage du bas de pompe Remontage du bas de pompePièces Pompes Dura-Flo avec moteur pneumatique NXT101 102 103 104 105 106 107 108 115 116 101 105 106104 103 108 102 107 Pièces 312598B Dimensions Avec moteur Moteur hydraulique Pneumatique NXT ViscountViscount Disposition des trous de fixationModèle NXT Consommation d’air ou débit d’huile Caractéristiques techniquesPression de sortie produit Légende Pompes Dura-Flo 1800 avec moteur pneumatique NXTPompes Dura-Flo 2400 avec moteur pneumatique NXT Fluid Outlet Pressure Hydraulic Oil Consumption Pompes Dura-Flo 1800 avec moteur hydraulique ViscountPompes Dura-Flo 2400 avec moteur hydraulique Viscount Garantie Graco standard Graco Information
