S C E N A R I O T M

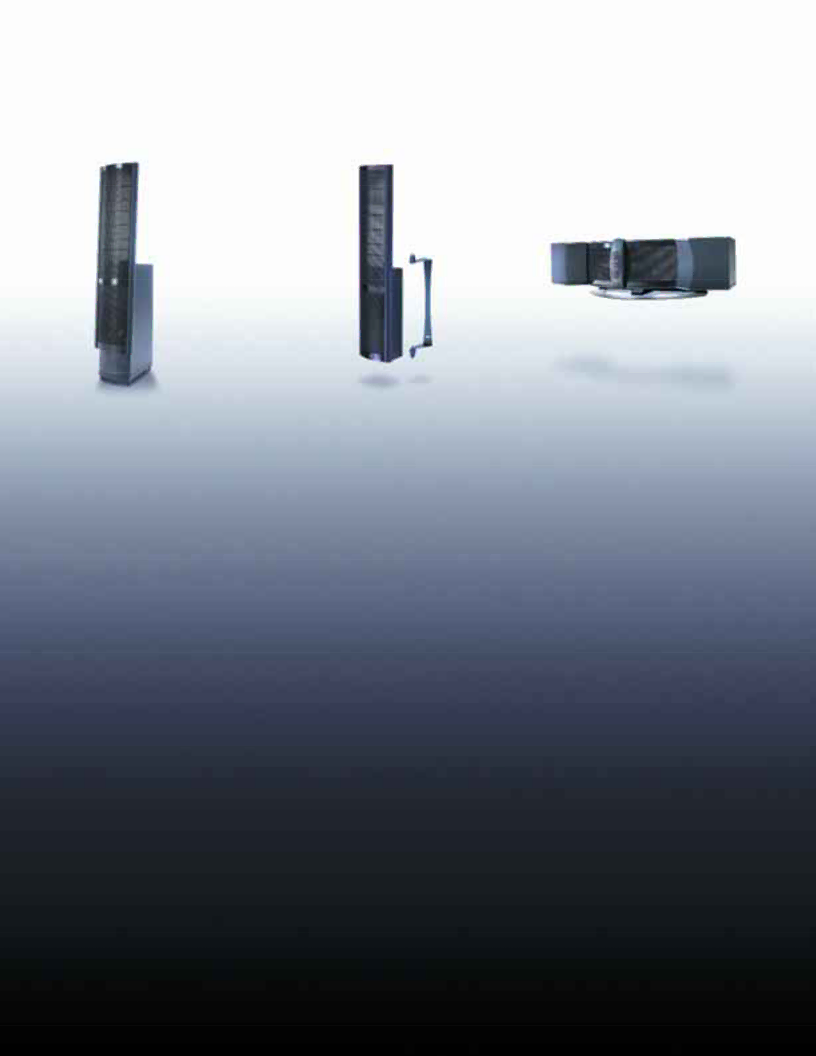

Created as our most affordable system, Scenario will excite those who need to save space, with- out compromising performance. Choose the Scenario for stunning stereo listening, or add the remarkable Cinema center channel and the wall mountable Script (rear effects) for an unforget- table home theater experience. Available in matte black. Single-wire connection. Pictured with optional ETC coupling spikes.

Frequency response:

45-22,000 Hz ± 3 dB

Dispersion:

Horizontal 30 degrees



Vertical 23” (58.4 cm)



line source

Sensitivity:

89 dB/2.83 volts/meter

Impedance:

6 ohms, 2 @20 kHz

Crossover frequency:

500 Hz

Components:

Custom-wound audio



transformer, air core coils

Woofer type:

8" (20.3 cm) high excur-



sion, high rigidity cone



with extended throw



driver assembly; non-



resonant asymmetrical



chamber format

Power handling:

200 watts/channel

Weight:

39 lbs., 17.6 kg each

Dimensions:

47”H x 10”W x 15.5”D



119 x 25 x 39 cm

S C R I P T T M

“Design and build a pure, flexible surround speaker…” that's exactly what we've done— and more. This versatile wall-mount speaker excels as a stereo main, rear surround, or in a multimedia configuration and can be driven by most AV receivers. Available in matte black or white. Single-wire connection.

Frequency response:

70-20,000 Hz, ±3 dB

Dispersion:

Horizontal 30 degrees



Vertical 23” (58.4 cm)



line source

Sensitivity:

88 dB/2.83 volts/meter

Impedance:

6 ohms, 3 @20 kHz

Crossover frequency:

500 Hz

Components:

Minimal straight path



design, air core coils

Woofer type:

6.5” (16.5 cm) mineral



filled poly-cone with high



damping rubber surround;



non-resonant chamber



format

Power handling:

150 watts/channel

Weight:

27 lbs., 12.2 kg each

Dimensions:

43”H x 10”W x 9”D



109 x 25 x 23 cm



w/ wall mount

T H E A T E R T M

From the beginning we realized that the center channel was the most critical home cinema speaker. Theater provides matchless dynamics and clarity—maintaining uniform, controlled dispersion. Theater’s multi-mount stand simplifies precise alignment whether you choose set-top, wall mount, or on-floor configuration. Shielded drivers for zero impact on picture quality. Single- wire connection.

Frequency response: 75-22,000 Hz ± 3 dB

Sensitivity: 90 dB/2.83 volts/meter

Impedance: 4 ohms, 3.1 @140 Hz

Crossover frequency: 300, 3000 Hz

Woofer type:

6.5” (16.5 cm) x 2,



magnetically shielded



non-resonant asymmetri-



cal chamber format

CLSTM mid-range:

Patented CLSTM electro-



static transducer

High frequency driver: 1” (2.5 cm) x 3 soft dome, controlled dispersion array

Power handling:

250 watts

Weight:

57 lbs., 26 kg w/stand

Dimensions:

41”H x 12”W x 11.8”D



104 x 30.5 x 30 cm w/stand
