FUNCTIONAL DESCRIPTION

FOREWORD

The Delta 46-715 14" adjustable speed wood lathe is a big capacity lathe, designed for industry, commercial shops, and schools.

NOTICE: The photo on the manual cover illustrates the current production model. All other illustrations contained in the manual are representative only and may not depict the actual color, labeling, or accessories and are intended to illustrate technique only.

UNPACKING AND CLEANING

Carefully unpack the machine and all loose items from the shipping container(s). Remove the protective coating from all unpainted surfaces. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone, gasoline or lacquer thinner for this purpose). After cleaning, cover the unpainted surfaces with a good quality household floor paste wax.

CARTON CONTENTS

2

3

1

4

8

5

6





7

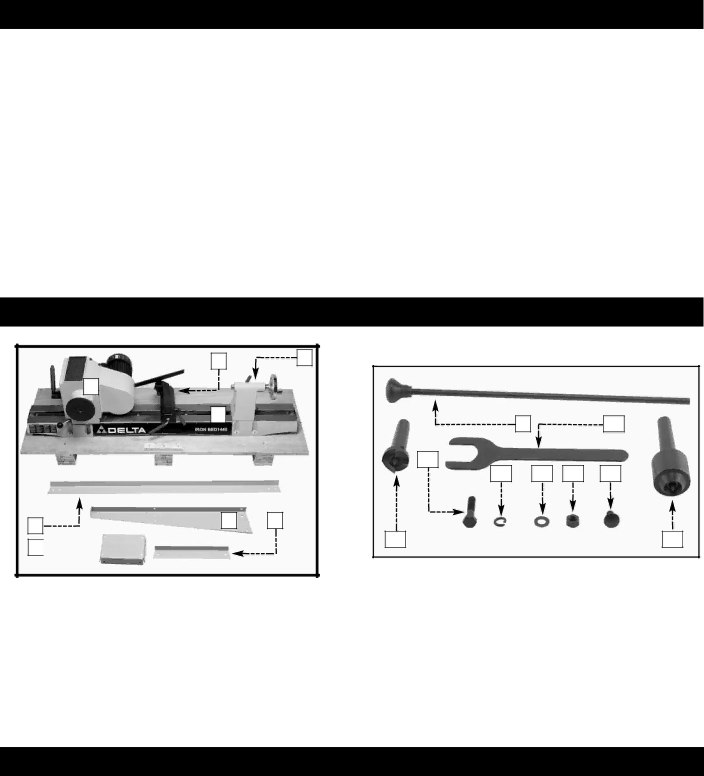

1.Headstock Assembly

2.Tool Rest Assembly

3.Tailstock Assembly

4.Lathe Bed

5.Leg (4)

6.Short Tie Bar (2)

7.Stand Top (2)

8.Long Tie Bar (2)

9.Knockout Bar



9



10

16







15

14

13

12

17





11

10.Spindle Wrench

11.Live Center

12.M8 x 16mm Carriage Bolts (24)

13.Nuts (32)

14.Flat Washers (32)

15.Lockwashers (32)

16.M8 x 35mm Hex Head Screws (8)

17.Drive Center

ASSEMBLY

ASSEMBLY TOOLS REQUIRED

Assembly for this tool will require a phillips-head screwdriver and an adjustable wrench.

ASSEMBLY TIME ESTIMATE

Assembly for this tool should take approximately 1 to 2 hours.
