ASRock 970 Pro3 R2.0 manual ASRock Smart Remote Installation Guide

Page 26

2.7 ASRock Smart Remote Installation Guide

ASRock Smart Remote is only used for ASRock motherboard with CIR header. Please refer to below procedures for the quick installation and usage of ASRock Smart Remote.

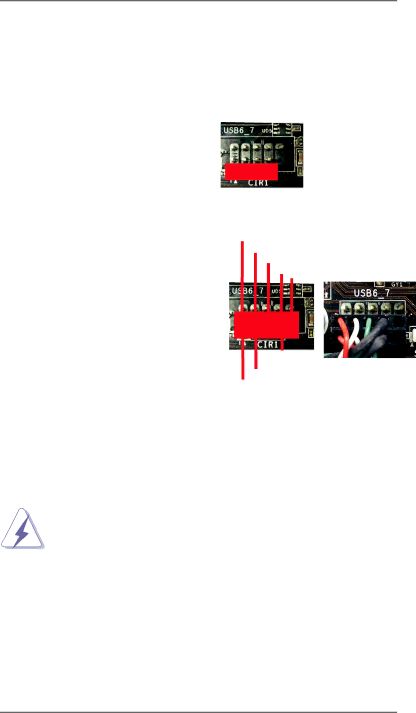

Step1. Find the CIR header located next to the USB 2.0 header on ASRock motherboard.

Step2. Connect the front USB cable to the USB 2.0 header (as below, pin 1-5) and the CIR header. Please make sure the wire assignments and the pin assignments are matched correctly.

USB 2.0 header (9-pin, black) CIR header (4-pin, gray)

USB_PWR

P-

P+

GND DUMMY

1 2 3 4 5

GND

IRTX

IRRX

ATX+5VSB

Step3.

Install Multi-Angle CIR Receiver to the front USB port.

Step4.

Boot up your system. Press <F2> or <Del> to enter BIOS Setup Utility.



Make sure the option "CIR Controller" is setting at [Enabled].



(Advanced -> Super IO Configuration -> CIR Controller -> [Enabled])







If you cannot find this option, please shut down your system and install



Multi-Angle CIR Receiver to the other front USB port then try again.





Step5.

Enter Windows. Execute ASRock support CD and install CIR Driver. (It is



listed at the bottom of driver list.)

26
