4.0 EXPLODED ASSEMBLY DIAGRAMS

			6
		16	3
		15
		12
		9
	14		1
			11
4	18
			8
5
		13
2			17
		10
		7

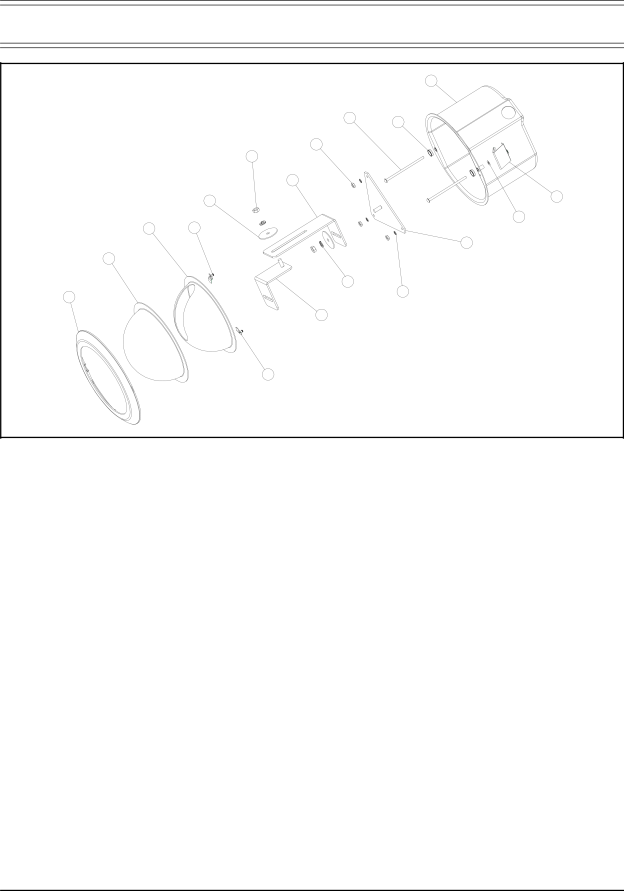

Figure 1. Exploded Assembly Diagram–DF5 In-Ceiling Models

Table A. Exploded Assembly Parts List–DF5 In-Ceiling Models

Item	Quantity	Description	Part Number
1	2	Spring paddle	70610027
2	1	Trim ring	70610030
3	2	Trim ring snap washer	70610036
4*	1	Dome liner	70610046
5	1	Acrylic dome (smoked)	70610015-04
		Acrylic dome (clear)	70610015-05
		Acrylic dome (chrome)	70610005-02
		Acrylic dome (gold)	70610005-03
6	1	Back box	7064020COMP
7*	2	Dome liner retainer	7064038COMP
8	1	Base plate	DF54000COMP
9	1	Tilt table support leg	DF54001COMP
10	1	Tilt table	DF54002COMP
11	2	Push nut bolt retainer	ZH810000
12	2	Nut, 1/4-20	ZH1/4-20NUTCH
13	3	Split lock washer, 1/4"	ZH1/4LWSSL
14	2	Fender washer, 1/4"	ZH255X1.50X62
15	3	Nut, 8-32	ZH8-32NUTSH
16	2	Screw, 8-32 x 3-1/2", pan head, Phillips	ZH8-32X3.50SPP
17	3	Internal star washer, #8	ZH8LWSIS
18*	2	Screw, M3 x 5, pan head, black	ZHM3X5BPT
NS	1	Flat washer, 3/16"	ZH260X562X65C
NS	1	Screw, 1/4-20 x 1/2", hex	ZH1/4-20X.500CH
NS	1	Conduit fitting	70610040
NS	1	Safety chain bracket	7064014COMP
NS	1	Trim ring leash assembly	7061010
NS = Not shown			* Required with clear dome only
