SyncMaster 181T/191T/171N/191N/170N/172N/192N/173N/193N

Retrait du support Monter la base

Retrait du support

Connection de

Votre Ordinateur

Installation des

Pilotes Moniteur

Remplacement du support

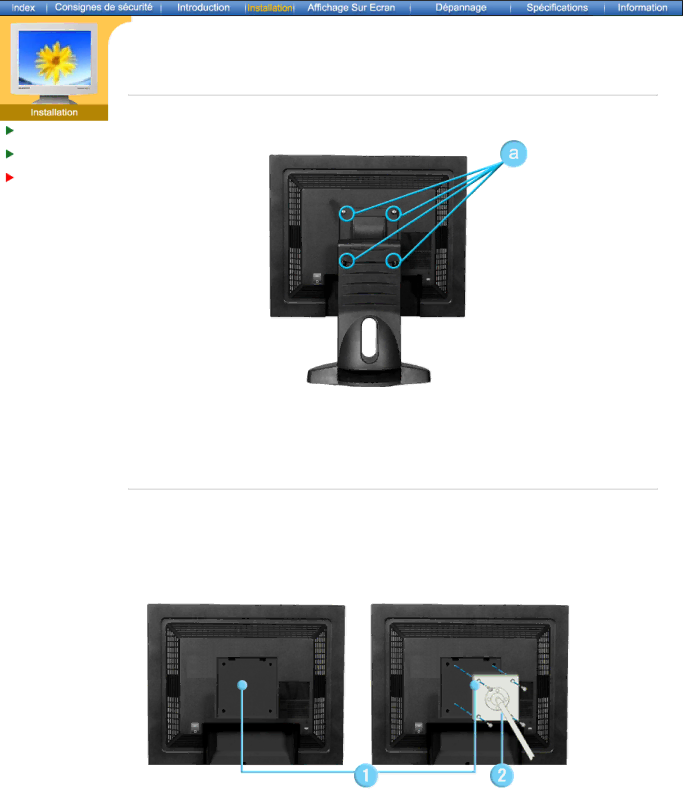

1.Mettez le moniteur hors tension et débranchez son cordon d’alimentation.

2.Posez le moniteur LCD face contre terre sur une surface plane en intercalant un coussin pour protéger l’écran.

3.Enlevez les quatre vis et ensuite le support du moniteur LCD.

Monter la base

REMARQUE : Ce moniteur accepte une interface de montage de 100 mm x 100 mm conforme à la norme VESA.

1.Panneau protecteur de montage arrière

2.Interface de montage

Alignez l’interface de montage sur les trous dans le panneau de montage arrière et fixez-la à l’aide des quatre vis fournies avec le support articulé, le dispositif d’accro-chage au mur ou l’autre support.
