Samsung DVD-FP580/SAM, DVD-F1080/SAM manual Connection to an Audio System 2 Channel Amplifier

•HDMI (High Definition Multimedia Interface)

HDMI is an interface to enable the digital transmission of video and audio data with just a single connector. Using HDMI, the DVD player transmits a digital video and audio signal and displays a vivid picture on a TV having an HDMI input jack.

•HDMI connection description

HDMI connector - Both uncompressed video data and digital audio data (LPCM or Bit Stream data).

-Though the player uses a HDMI cable, the player outputs only a pure digital signal to the TV.

-If TV does not support HDCP (High-bandwidth Digital content protection), snow noise appears on the screen.

•Why does Samsung use HDMI?

Analog TVs require an analog video/audio signal. However, when playing a DVD, the data transmitted to a TV is digital. Therefore either a digital-to-analog converter (in the DVD player) or an analog-to-digital converter (in the TV) is required. During this conver- sion, the picture quality is degraded due to noise and signal loss. DVI technology is superior because it requires no D/A conversion and is a pure digital sig- nal from the player to your TV.

•What is the HDCP?

HDCP (High-bandwidth Digital Content Protection) is a system for protecting DVD content outputted via DVI from being copied. It provides a secure digital link between a video source (PC, DVD. etc) and a display device (TV, projector . etc). Content is encrypted at the source device to prevent unautho- rized

English

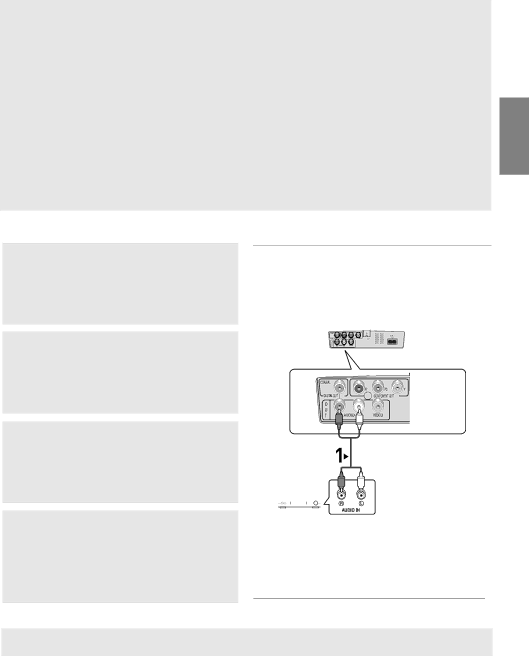

Connection to an Audio System (2 Channel Amplifier)

1

Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of the Amplifier.

2

Using the video signal cable(s), connect the VIDEO or COMPONENT OUT terminals on the rear of the DVD play- er to the VIDEO or COMPONENT IN terminal of your TV.

REDWHITE

3

Turn on the DVD player, TV, and Amplifier.		Audio Cable
	RED		WHITE

2-Channel stereo amp

4

Press the input select button of the Amplifier to select external input in order to hear sound from the DVD player.

Note

-Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears.

-Please set the audio in the menu screen according to the Amplifier.(See pages 26-27)

-The position of terminals can vary depending on the Amplifier. Please refer to the user's manual of the Amplifier.

13
