Q-See QSD371614C4-250 user manual Hardware Setup, Hard Drive Installation, Monitor Connection

Page 8

Operation Manual-4CH Duplex DVR

If you are using a Mouse it must be connected to DVR before you startup system. Connect the power adapter to the DVR this will turn on the DVR.

Make sure that a hard drive and camera(s) are properly installed.

Start TV Monitoring and Recording.

After installation of hard drive, the hard drive must be fixed tight enough with screws.

If the power is turned off while recording (i.e. a power failure), the DVR will enter “Power Recovery” mode at start up, detect that it has been shut down, and then re-initiate the recording process.

5. HARDWARE SETUP

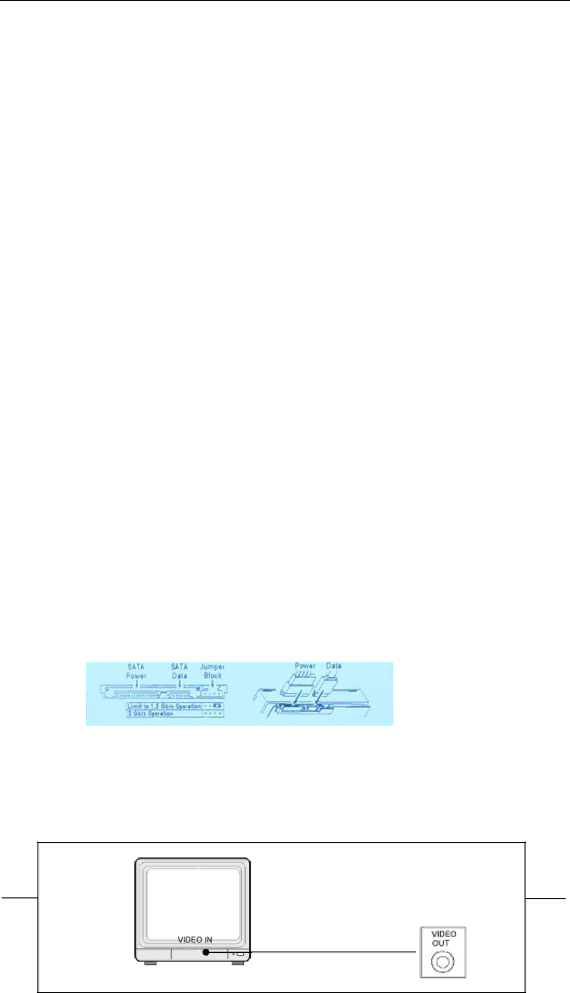

5.1 Hard Drive Installation

This model uses an internal SATA hard drive, and comes with a 250GB hard drive pre-installed.

If you want to install a larger hard drive you would need to remove the cover of the DVR, remove the power and data cables from the existing drive and unscrew it from the base, then screw in the new hard drive and attach the power and data cables to it.

Connect the cables as follows:

5.2 Monitor Connection

To display video image from cameras on the monitor, the DVR’s video output signal needs to be transferred to your TV set or monitor.

Connect a monitor to the

“VIDEO OUT” port on the DVR

Image 8
