Tyco QuickStatTM Commandes du thermostat et symboles affichés, Câblage du thermostat

Page 8

8

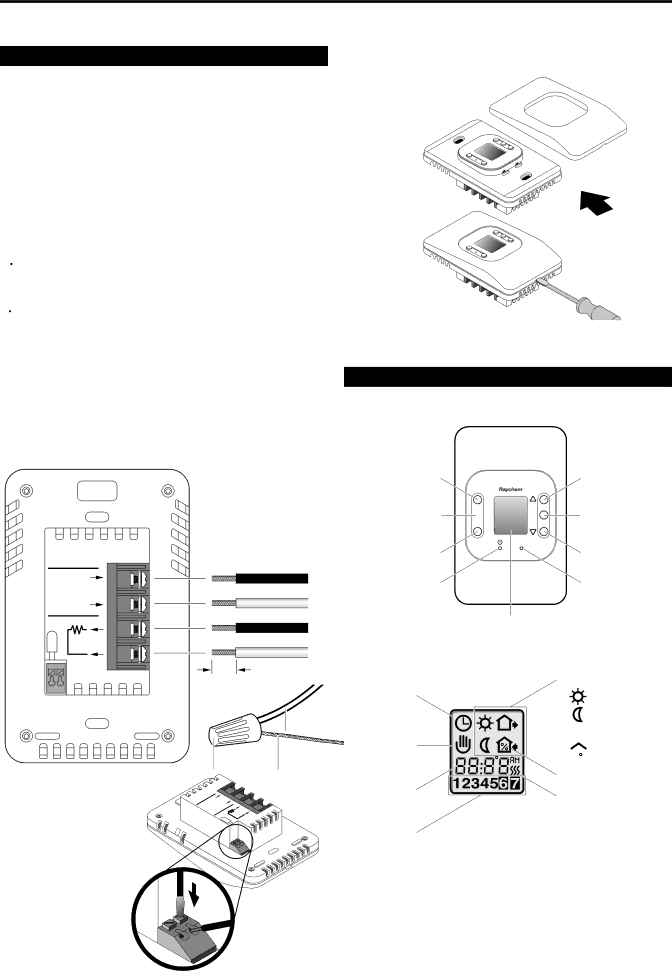

Instructions d’opération et d’utilisation du thermostat QuickStat

Installation

Important: L’installation de ce thermostat doit être conforme aux codes de l’électricité national et local. Elle doit être faite par un technicien qualifié.

Position de la sonde de température

La sonde de température doit être installée sous la surface du plancher. Voir le manuel d’installation du système QuickNet (H57704), chapitre 6, pour plus de détails.

Si nécessaire, la longueur du câble de la sonde peut être prolongée jusqu’à 91 m (300 pi).

Montage du thermostat dans la boîte électrique

1. À l’aide d’un tournevis, retirer le couvercle.

Câblage du thermostat

ATTENTION : POUR ÉVITER LES CHOCS ÉLECTRIQUES, ISOLER LE CIRCUIT D’ALIMENTATION AU NIVEAU DU TABLEAU DE DISTRIBU- TION ÉLECTRIQUE.

ATTENTION : RISQUE DE CHOC; POUR ÉVITER TOUT RISQUE DE CHOC ÉLECTRIQUE, LE TAPIS DE CHAUFFAGE DU SOL DOIT ÊTRE RELIÉ À LA TERRE.

1.Brancher les fils de l’alimentation secteur du thermostat aux bornes marquées « L1 (L) » et « L2 (N) ».

2.Raccordez le fil froid du système de chauffage aux bornes marquées « Load 16A Max ».

3.Brancher le faisceau de fils froids du système de chauffage de sol (terrre) à mise à la terre de l’alimentation dans la boîte de jonction électrique.

2. Monter le thermostat dans la prise murale et replacer le couvercle.

Commandes du thermostat et symboles affichés

La figure ci-dessous indique les commandes du thermostat :

Bouton de réarmement

Bouton PLUS

Voyant rouge

Reset

QuickStat®

GFCI Class A

LINE L1 (L)

240/(120)VAC



L2 (N)

LOAD



SENSOR

Max.



16A

Phase (noir)

Phase 2 (rouge) ou neutre (blanc)

Fil froid

Fil froid

signalant un court- GFCIBouton OK - Accepter circuit à la terre



Test



R

Bouton de test.

Bouton MOINS

Mini-bouton de

Mini-bouton

réglage de l'horloge

de réinitialisation



Afficheur

La figure ci-dessous illustre les symboles qui apparaissent sur l’afficheur pendant la programmation :

4.Brancher la sonde de température du plancher aux bornes sans

vis marquées « Sensor ».

Appuyer sur le ressort de la

borne avec un tournevis et

engager les fils dénudés.

6 mm (1/4 po) Dénuder

Capuchon de connexion



240/(120)VAC(N)



(L)

E

L1

LIN

L2



Hz

(16A)





D

16A

.



(16A)

LO



Max



50/60

1920W/2120VAC

R

SENSO



servicing



VOLTAGE3840W/240VAC







Disconnect

DUAL











before













-supply















NVoltagepower













:















TIO

High















UA















C







Fonction horloge

Mise à la terre alimentation

Mode manuel

Fil froid de mise à la terre

Heure et température

Jour de la semaine

Symboles 4 événements:

Réveil

Nuit

Départ

Retour à la maison

%chauffage Chauffage actif
