Electrolux 2498-6 GA operating instructions Installation Location

Page 9

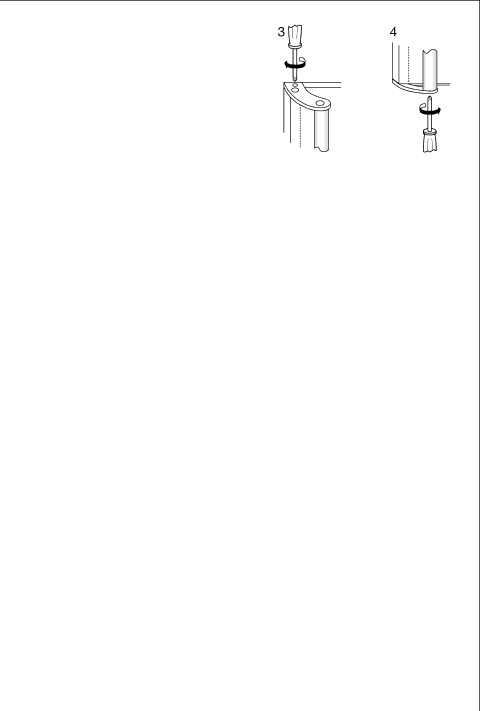

2.Fit the top handle bracket on the top left-hand side of the door (3)

and screw the handle rod to the bottom handle bracket (4).

Installation

Installation Location

The appliance should be installed in a well ventilated, dry room.

Energy use and efficient performance of the appliance is affected by the ambient temperature.

The appliance should therefore

not be exposed to direct sunlight;

not be installed next to radiators, cookers or other sources of heat;

only be installed at a location whose ambient temperature corresponds to the climate classification, for which the appliance is designed.

The climate classification can be found on the rating plate, which is located at the left on the inside of the appliance.

The following table shows which ambient temperature is correct for each climate classification:

Climate classification

for an ambient temperature of

SN

+10 to +32 °C

N

+16 to +32 °C

ST

+18 to +38 °C

T

+18 to +43 °C





818 20 67-00/2

9
