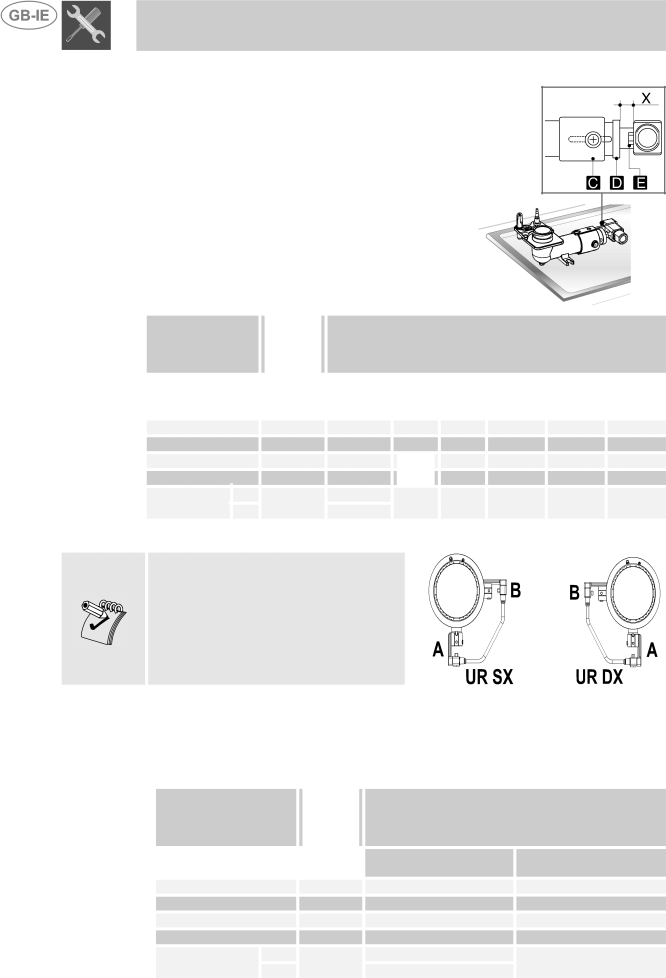

Instructions for the installer

5.2Regulation for LPG

Loosen screw C and push air regulator D to the bottom.

With a 7 mm wrench, remove nozzle E and replace it with the proper one (follow the instructions on the reference tables for the type of gas to be used). The torque wrench setting of the nozzle must not exceed 3 Nm.

Regulate the air by sliding regulator D until reaching distance “X” shown in the table in paragraph “5.4 Regulation of primary air ”.

Lock regulator D by tightening screw C.

Rated

BurnerheatingLPG – G30/G31 28/37 mbar capacity

(kW)

Nozzle



By-pass



Reduced



Flowrate



Flowrate

diameter



mm



flowrate



g/h G30



g/h G31

1/100 mm



1/100



(W)









Auxiliary



Semi rapid



Medium rapid



Large rapid



UR

A

B



1.0

1.6

2.3

3.0

3.6

48

62

75

82

76

48

30(**)

33 (*)

30(**)

35 (*)

40(**)

43 (*)

40(**)

45 (*)

48 (**)

52 (*)

450 73 72

500 116 114

700

167

164

800

218

215

1000 261 257

*/**: diameters marked * and ** must be fitted respectively on valves marked * and **shown inpoint “5.6 Regulation of minimum for natural gas”.

CAUTION: for references A and B on the lh UR and rh UR burners, see drawings at side.

5.3Regulation for natural gas

The hob has been inspected for G20 (2H) natural gas at a pressure of 20 mbar. To allow the unit to work with this type of gas, perform the same operations described in paragraph “5.2 Regulation for LPG ”, but choose the nozzles and regulate the primary air for natural gas, as shown in the following table and in paragraph “5.4 Regulation of primary air ”.

Burner

Auxiliary

Semi rapid

Medium rapid

Large rapid

Rated

heatingNatural gas – G20 20 mbar capacity

(kW)

Nozzle diameter

Reduced flowrate

1/100 mm

(W)

1.0

73

400

1.65

92

500

2.3

110

700

3.0

126

800

UR

A

3.6

115

1000

B

73







26

Image 9
