Whirlpool TER50W0D warranty Lift-up cooktop, Cleaning chart, Part What To USE, HOW to Clean

Page 28

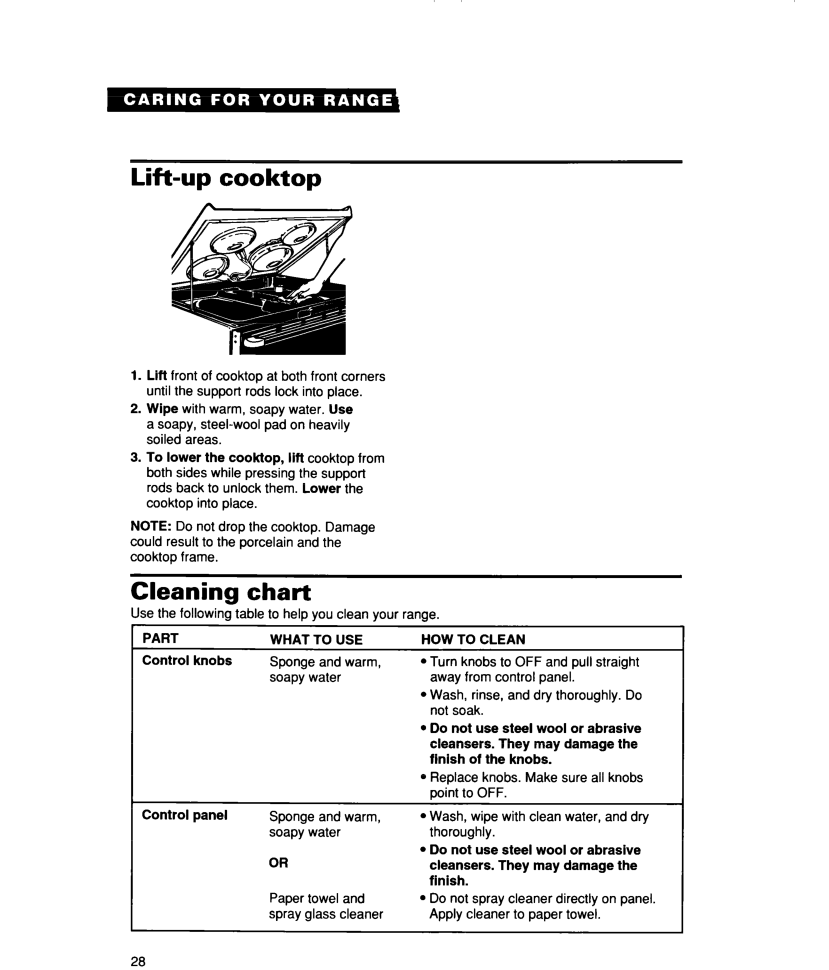

Lift-up cooktop

1.Lift front of cooktop at both front corners until the support rods lock into place.

2.Wipe with warm, soapy water. Use a soapy, steel-wool pad on heavily soiled areas.

3.To lower the cooktop, lift cooktop from both sides while pressing the support rods back to unlock them. Lower the cooktop into place.

NOTE: Do not drop the cooktop. Damage could result to the porcelain and the cooktop frame.

Cleaning chart

Jse the following table to help you clean your range.

,

PART

WHAT

TO USE

Control knobs

Sponge

and warm,



soapy water

HOW TO CLEAN

l Turn knobs to OFF and pull straight away from control panel.

l Wash, rinse, and dry thoroughly. Do not soak.

l Do not use steel wool or abrasive cleansers. They may damage the finish of the knobs.

l Replace knobs. Make sure all knobs point to OFF.

Control panel

Sponge and warm,



soapy

water





OR







Paper

towel

and



spray

glass

cleaner

l

l

l

Wash, wipe with clean water, and dry thoroughly.

Do not use steel wool or abrasive cleansers. They may damage the finish.

Do not spray cleaner directly on panel. Apply cleaner to paper towel.

28
