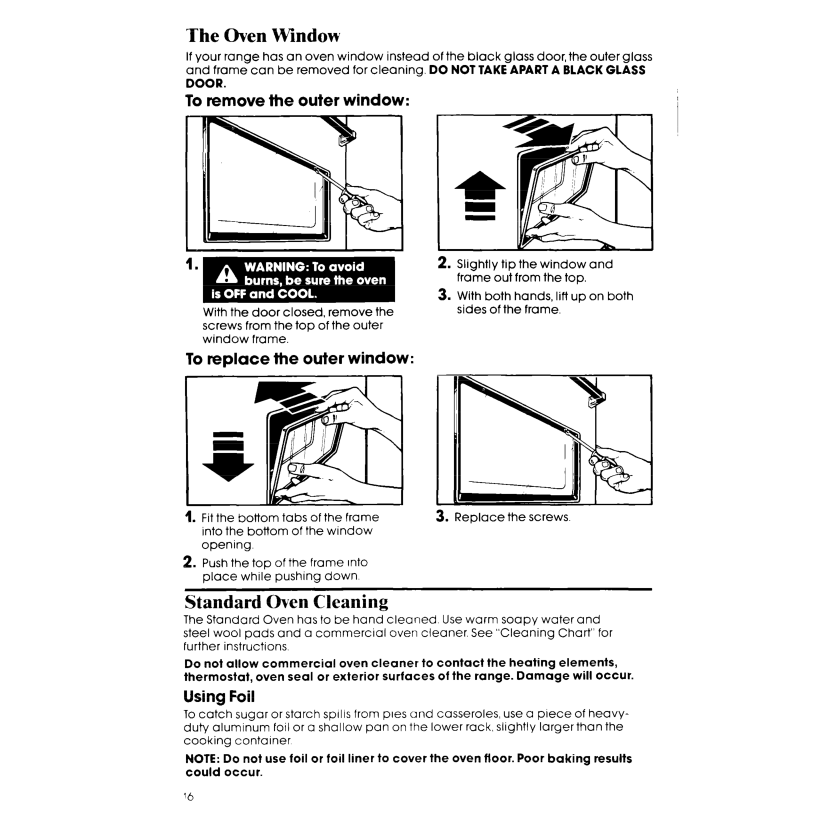

The Oven Window

If your range has on oven window instead of the block gloss door, the outer gloss and frame con be removed for cleaning. DO NOT TAKE APART A BLACK GLASS DOOR.

To remove the outer window:

1.

With the door closed, remove the screws from the top of the outer window frame.

2.Slightly tip the window and frame out from the top.

3.With both hands, lift up on both sides of the frame.

To replace the outer window:

1. Fit the

bottom

tabs

of the

frame

3. Replace the screws

into the bottom of the window



opening.









2. Push the top of the

frame

Into



place

while

pushing down.



Standard Oven Cleaning

The Standard Oven has to be hand cleaned. Use worm soapy water and steel wool pods and a commercial oven cleaner. See “Cleaning Chart” for further instructions.

Do not allow commercial oven cleaner to contact the heating elements, thermostat, oven seal or exterior surfaces of the range. Damage will occur.

Using Foil

To catch sugar or starch spills from pies and casseroles, use a piece of heavy- duty aluminum foil or a shallow pan on the lower rock, slightly largerthan the cooking container

NOTE: Do not use foil or foil liner to cover the oven floor. Poor baking results could occur.
