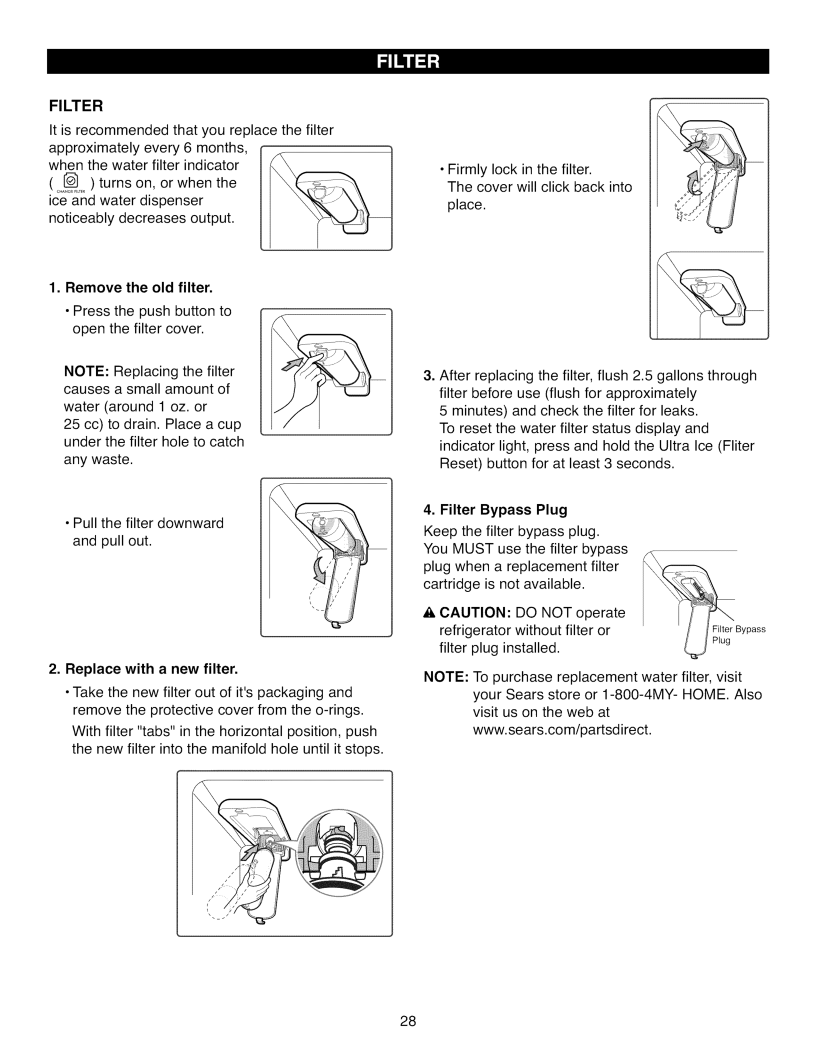

Page 28

FILTER

It is recommended that you replace the filter

approximately every 6 months, when the water filter indicator

(

) turns on, or when the

ice and water dispenser

noticeably decreases output.

1.Remove the old filter.

•Press the push button to open the filter cover.

NOTE: Replacing the filter causes a small amount of water (around 1 oz. or

25 cc) to drain. Place a cup under the filter hole to catch

any waste.

•Pull the filter downward and pull out.

2.Replace with a new filter.

•Take the new filter out of it'spackaging and remove the protective cover from the o-rings. With filter "tabs" in the horizontal position, push the new filter into the manifold hole until it stops.

•Firmly lock in the filter.

The cover will click back into place.

3.After replacing the filter, flush 2.5 gallons through filter before use (flush for approximately

5 minutes) and check the filter for leaks. To reset the water filter status display and indicator light, press and hold the Ultra Ice (Fliter Reset) button for at least 3 seconds.

4.Filter Bypass Plug

Keep the filter bypass plug. You MUST use the filter bypass plug when a replacement filter cartridge is not available.

•, CAUTION: DO NOT operate refrigerator without filter or filter plug installed.

NOTE: To purchase replacement water filter, visit your Sears store or 1-800-4MY- HOME. Also visit us on the web at www.sears.com/partsdirect.

28
