 Installing the Cabinet

1.For safe, reliable operation, select an installation site which will provide the following conditions:

•Protection from irrigation spray, exposure to direct sun during the hottest hours, wind and snow.

•Access to a grounded power source which is not controlled by a light switch or utilized by a high current load appliance, such as a refrigerator or air conditioner.

•Access to the sprinkler control valve wiring and optional accessory wiring.

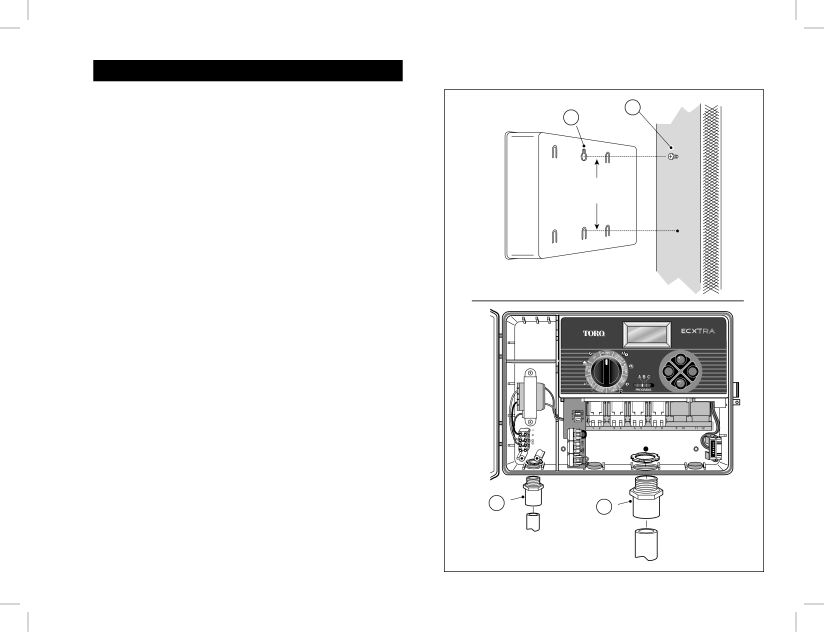

2.Drive a wood screw (provided) into the wall at eye level (A). Leave the screw extended approximately 1/4″ from the wall.

Note: If you are installing the timer on drywall or masonry, install screw anchors to prevent screws from loosening. Use the dimension shown to predrill holes for screw anchors.

3.Hang the cabinet on the screw using the keyhole slot (B) on the back panel. Make sure the cabinet slides down securely on the screw.

4.Install the lower mounting screw(s) and tighten securely.

Note: Conduit and adapters are not provided. Install conduit as required by local electrical codes.

5.Install 1/2″ conduit (C) for power/equipment ground wires and 3/4″ conduit (D) for valve wires.

Note: After installation, store the Quick Start Guide on the hook located on the inside of the door.
