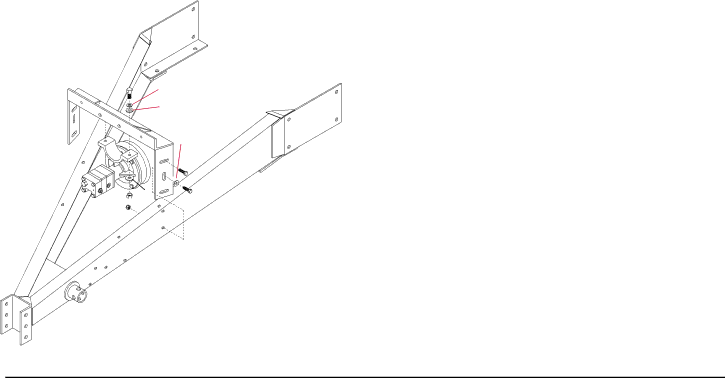

ACE CENTRIFUGAL HYDRAULIC PUMP MOUNTING

6 4

1

9



4

3

2 8 7

5

40.Begin by bolting the pump hanger (#1) to the frame with four 3/8" x 1-1/4" bolts, two flatwashers and four nylon locknuts as shown.

41.Bolt pump (#2) to hanger using two 7/16" x 1-1/2" bolts, flatwashers and nylon locknuts.

NOTE: Be sure to match hydraulic motor driven pump capabilities to your tractors hydraulic system.

ACE HYDRAULIC PUMP PARTS LIST

REF.

PART







NO.

NO.

QTY.



DESCRIPTION

1.

07207-30

1

Pump Hanger

2.

FMCHYD204

1

Ace Hydraulic Pump

3.

00523

4

3/8"-16

UNC x 1-1/4" Hex Head Bolt

4.

00059

4

3/8" Flatwasher

5.

02592

4

3/8"-16

UNC Nylon Insert Locknut

6.

00908

2

3/8"-16

UNC x 1-3/4" Hex Head Bolt

7.

00078

2

3/8" Lockwasher

8.

00079

2

3/8"-16

UNC Hex Nut

9.

00085

2

1/2” Flatwasher

Please order replacement parts by PART NO. and DESCRIPTION.

START-UP INSTRUCTIONS FOR CENTRIFUGAL

PUMPS WITH MANUAL CONTROL PANEL

1.Run approximately 50 gallons of water in the tank.

2.Open the poly ball valve in the pump intake line. Important: Remove top plug on pump to bleed all air from the suction line to the pump or damage will result to the seals. (Pump cannot be run dry).

3.Close the wedge valve on the front of the control panel.

4.Close the wedge agitation valve on the control panel back.

5.Make sure the ratchet valve on the control panel back is in the open position.

6.Open the three manual valves on the control panel.

7.Start the pump and run at 540 RPM.

8.Open the wedge valve on the front of control panel until the gauge reads approx. 3 PSI over your desired spraying pressure with all three booms spraying.

9.Open the wedge agitation valve on the control panel until the gauge drops to your desired spraying pressure. Example: If desired spraying pressure is 30 PSI open the wedge valve on the back of the control panel until the gauge reads 33 PSI. After this, open the wedge agitation valve on the control panel until the gauge drops back down to 30 PSI. (This is to insure the recommended pressure to the tank jet agitators).

10.Check for leaks.

11.Make certain all bolts and clamps are tight.

START-UP INSTRUCTIONS FOR CENTRIFUGAL

PUMPS WITH ELECTRIC CONTROL PANEL

1.Run approximately 50 gallons of water in the tank.

2.Open the poly ball valve valve in the pump intake line. Important: Remove top plug on pump to bleed all air from the suction line to the pump or damage will result to the seals. (Pump cannot be run dry).

3.Close the wedge valve on the front of the control panel.

4.See "Panel Mounting and Operation" in Electric Control Panel Instruction Manual.
