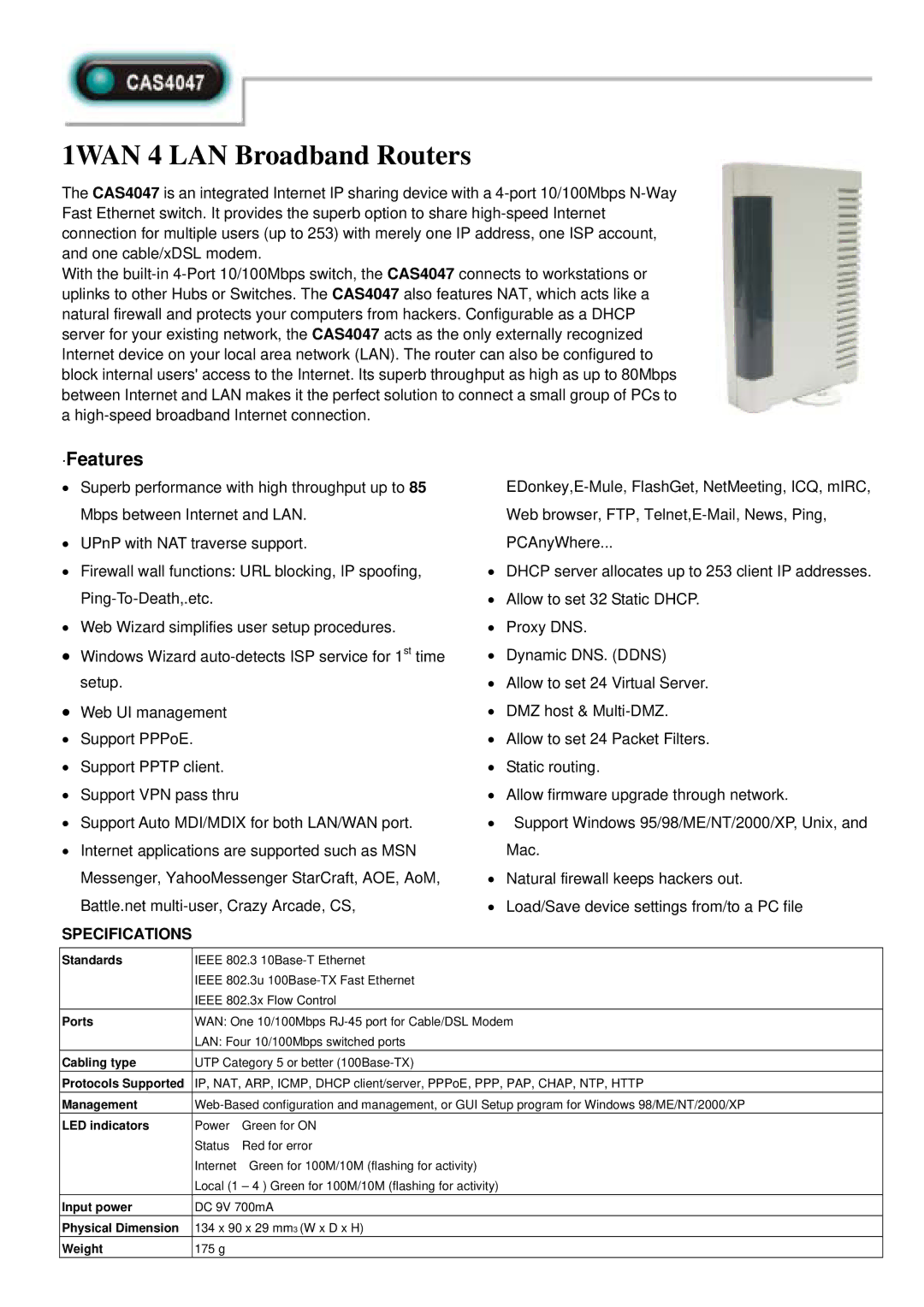

1WAN 4 LAN Broadband Routers

The CAS4047 is an integrated Internet IP sharing device with a 4-port 10/100Mbps N-Way Fast Ethernet switch. It provides the superb option to share high-speed Internet connection for multiple users (up to 253) with merely one IP address, one ISP account, and one cable/xDSL modem.

With the built-in 4-Port 10/100Mbps switch, the CAS4047 connects to workstations or uplinks to other Hubs or Switches. The CAS4047 also features NAT, which acts like a natural firewall and protects your computers from hackers. Configurable as a DHCP server for your existing network, the CAS4047 acts as the only externally recognized Internet device on your local area network (LAN). The router can also be configured to block internal users' access to the Internet. Its superb throughput as high as up to 80Mbps between Internet and LAN makes it the perfect solution to connect a small group of PCs to a high-speed broadband Internet connection.

·Features

Superb performance with high throughput up to 85



EDonkey,E-Mule, FlashGet, NetMeeting, ICQ, mIRC,



Mbps between Internet and LAN.



Web browser, FTP, Telnet,E-Mail, News, Ping,

UPnP with NAT traverse support.



PCAnyWhere...

Firewall wall functions: URL blocking, IP spoofing,

DHCP server allocates up to 253 client IP addresses.



Ping-To-Death,.etc.



Allow to set 32 Static DHCP.

Web Wizard simplifies user setup procedures.

Proxy DNS.

Windows Wizard auto-detects ISP service for 1st time

Dynamic DNS. (DDNS)



setup.





Allow to set 24 Virtual Server.

Web UI management



DMZ host & Multi-DMZ.

Support PPPoE.





Allow to set 24 Packet Filters.

Support PPTP client.



Static routing.

Support VPN pass thru



Allow firmware upgrade through network.

Support Auto MDI/MDIX for both LAN/WAN port.

Support Windows 95/98/ME/NT/2000/XP, Unix, and

Internet applications are supported such as MSN



Mac.



Messenger, YahooMessenger StarCraft, AOE, AoM,

Natural firewall keeps hackers out.



Battle.net multi-user, Crazy Arcade, CS,

Load/Save device settings from/to a PC file

SPECIFICATIONS

















Standards

IEEE 802.3 10Base-T Ethernet









IEEE 802.3u 100Base-TX Fast Ethernet









IEEE 802.3x Flow Control





Ports

WAN: One 10/100Mbps RJ-45 port for Cable/DSL Modem





LAN: Four 10/100Mbps switched ports





Cabling type

UTP Category 5 or better (100Base-TX)





Protocols Supported

IP, NAT, ARP, ICMP, DHCP client/server, PPPoE, PPP, PAP, CHAP, NTP, HTTP

Management

Web-Based configuration and management, or GUI Setup program for Windows 98/ME/NT/2000/XP

LED indicators

Power

Green for ON









Status

Red for error









Internet

Green for 100M/10M (flashing for activity)









Local (1 – 4 ) Green for 100M/10M (flashing for activity)



Input power

DC 9V 700mA





Physical Dimension

134 x 90 x 29 mm3 (W x D x H)





Weight

175 g







Page 1
Image 1
Abocom CAS4047 specifications 1WAN 4 LAN Broadband Routers, ·Features, Specifications

CAS4047 specifications

The Abocom CAS4047 is a powerful and versatile camera solution that caters to various surveillance needs. Designed primarily for security applications, this camera is renowned for its high-quality image capture and robust performance in diverse environments.

One of the standout features of the CAS4047 is its high-resolution imaging capability. Equipped with a high-definition sensor, it delivers vivid and detailed images, making it easier for security personnel to identify individuals and objects in captured footage. The camera supports various resolutions, ensuring flexibility based on user requirements.

In terms of low-light performance, the CAS4047 excels due to its advanced infrared night vision technology. This feature allows the cameras to capture clear images even in complete darkness, making it ideal for nighttime surveillance. The infrared LEDs provide illumination without disturbing the environment, ensuring discrete monitoring.

Another significant characteristic of the Abocom CAS4047 is its wide dynamic range (WDR) capability. This technology allows the camera to maintain image clarity in high-contrast lighting situations, such as bright sunlight and deep shadows. As a result, details are preserved in scenes where traditional cameras might struggle, enhancing the overall effectiveness of security monitoring.

The CAS4047 also supports flexible installation options, making it suitable for various operational needs. It can be mounted in numerous orientations, including wall or ceiling, and is adept at covering large areas thanks to its wide field of view. This versatility allows it to be used in settings ranging from retail environments to public spaces.

Connectivity is another strong point of the CAS4047. It features various connectivity options, including Ethernet and Wi-Fi, allowing for easy integration into existing surveillance systems. Users can enjoy seamless streaming and remote access to live feeds through compatible monitoring software, enhancing operational efficiency.

Furthermore, the camera's durability is commendable. Built to withstand challenging environmental conditions, the CAS4047 is often weatherproof and vandal-resistant, ensuring longevity and reliability in outdoor applications. Its robust construction makes it a reliable choice for continuous operation in high-traffic areas.

In summary, the Abocom CAS4047 stands out with its combination of high-resolution imaging, advanced low-light performance, and flexible installation options. Its wide dynamic range and connectivity capabilities further enhance its appeal for various security applications. Ideal for both indoor and outdoor use, this camera meets the demanding needs of modern surveillance systems, making it an excellent choice for businesses and organizations looking to improve their security infrastructure.
