DESCRIPTION

The Bluetooth USB Dongle, UBT3KH is class 1 wireless device which eliminates proprietary cables , allows you to connect with your entire enable Bluetooth device such as phones, PCs, PDA, Printer, Laptop, web pad., it will automatically search its Bluetooth counterpart, allowing mobile user to connect to mobile operating devices wirelessly and effortlessly .

FEATURES

zBluetooth Specification V2.0 compliant

z Class1 transmission range up to 100 meters

zSupports Bluetooth software BTW5.0

zAFH (Adoptive Frequency Hopping)

zESCO (Enhanced SCO) for voice quality

zEasy to use-makes wireless networking simple

zEasy to follow-friendly user interface provides an easy way to connect other Bluetooth devices

SPECIFICATION

Standards

Frequency Band

Tx Power

Rx Sensitivity

Distance

Output Interface

Compatible OS

Physical Specification:

Environmental Range:

Certifications:

Certifications:

zBluetooth specification V2.0 compliant

zEDR (Enhance Data Rate)

2402 ~ 2480 MHz

1 ~ 100mW (Bluetooth Power Class I)

< -80dBm (BER 0.1%)

> 100m (open space)

USB 2.0

Microsoft Windows 98SE/2000//ME/XP

zDimension: 65.5 x 19 x 8 mm (LxWxH)

zWeight: 10g

Operating temperature:-10 ~ +50

Humidity: Relative humidity 0 ~ 95%

FCC, CE, BQB

FCC, CE, BQB

2005-12-28

Page 1
Image 1

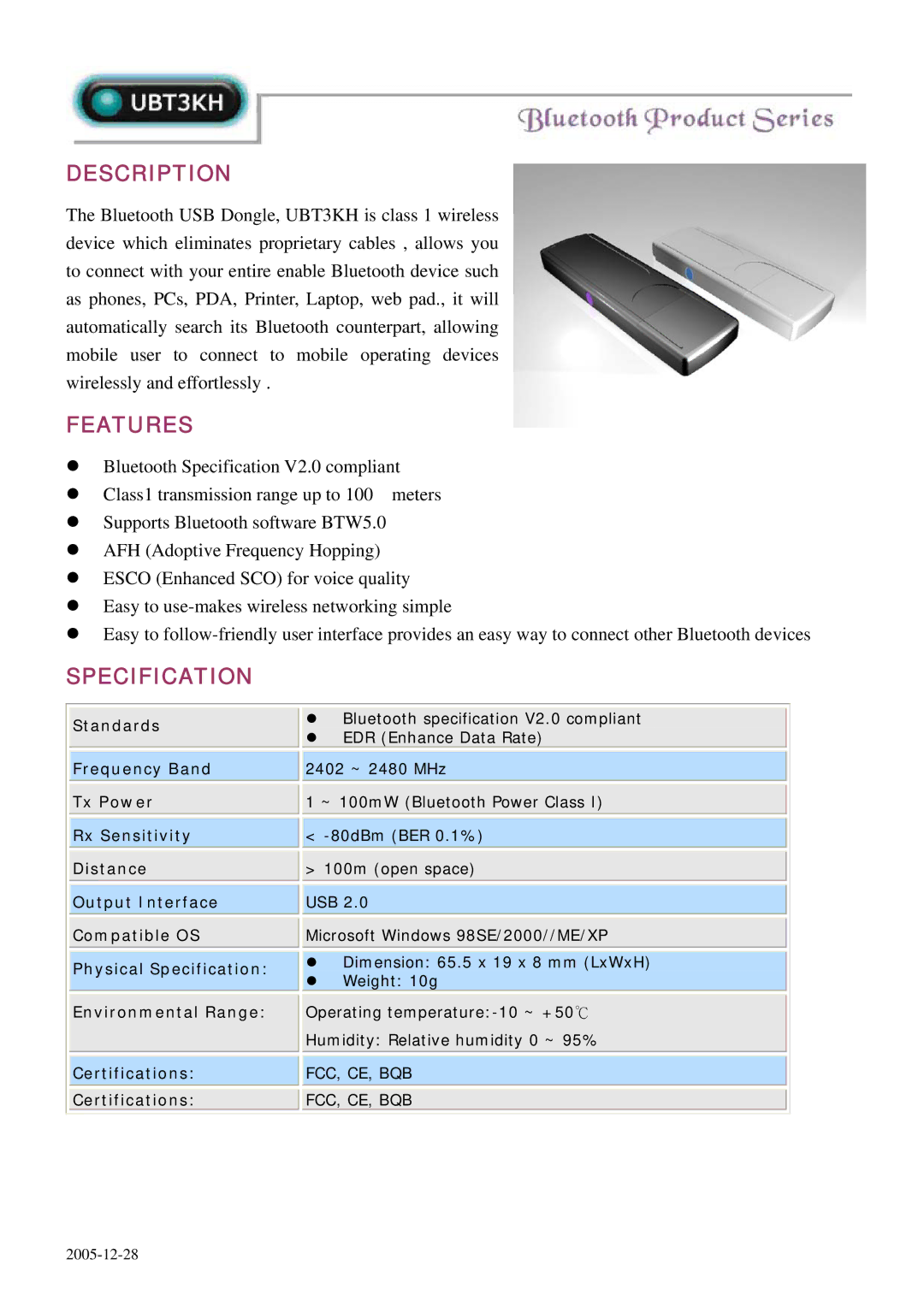

Abocom UBT3KH specifications Description, Features, Specification
